Easy UPS 3M 80kVA 400V 3:3 UPS for internal batteries, Start-up 5x8
Replaceable dust filters
protect the UPS in harsh environments.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

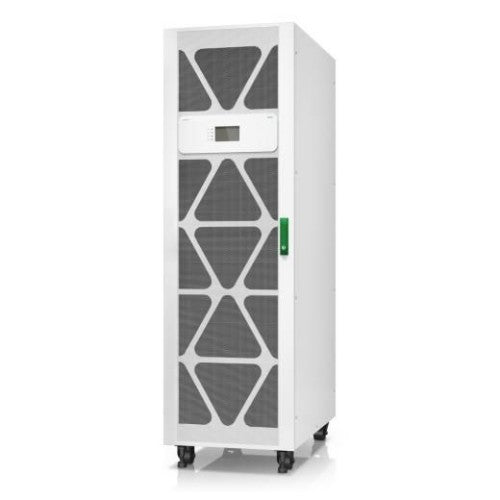

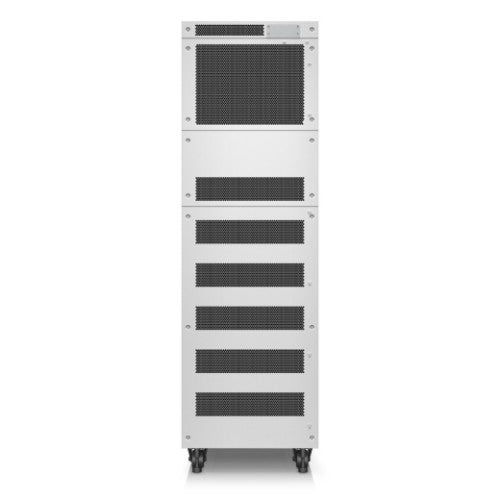

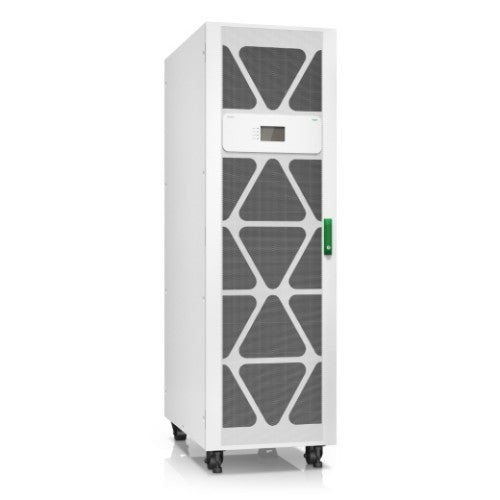

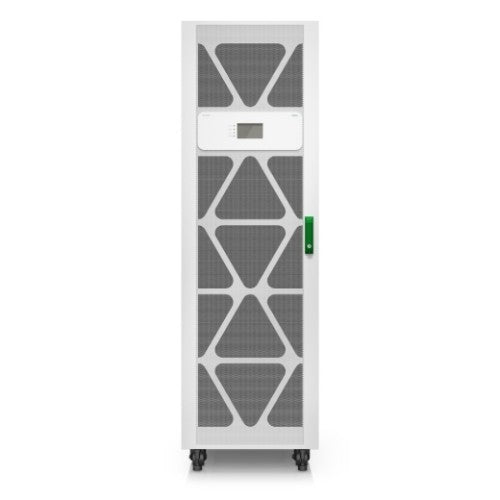

APC E3MUPS80KHBS uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA 80000 W
Sale price
£10,524.94
Regular price
£12,679.95
Taxes included.
Shipping calculated at checkout.
Details
Description
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5x8 start-up service.Replaceable dust filters
protect the UPS in harsh environments.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Specifications
| Power | |
|---|---|
| Output power | 80000 W |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 146 A |
| Power factor | 0.99 |
| Output power capacity | 80 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Output power | 80000 W |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 146 A |
| Surge protection | Yes |
| Power factor | 0.99 |
| Audible alarm(s) | Yes |
| Output power capacity | 80 kVA |
| Input frequency | 40 - 70 Hz |
| Battery | |
| Battery voltage | 240 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| Product colour | White |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 450 m |
| Non-operating altitude | 0 - 4500 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 750 mm |
| Package depth | 1125 mm |
| Package height | 2102 mm |
| Weight | 339 kg |
| Width | 600 mm |
| Package weight | 387 kg |
| Height | 1970 mm |
| Depth | 1000 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Package width | 750 mm |
| Package depth | 1125 mm |
| Package height | 2102 mm |
| Package weight | 387 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Packaging content | |
| Quick installation guide | Yes |
