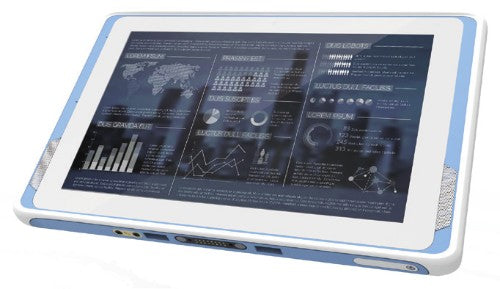

10.1" Industrial Tablet, 10I, 4GB, 64GB, WIN10, 802.11AC
Advantech AIM-58CT-12101000 tablet Intel Atom® 64 GB 25.6 cm (10.1") 4 GB Wi-Fi 5 (802.11ac) Windows 10 IoT Enterprise Black
£956.02
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Intel® AtomTM processor with Windows 10 IoT & Android 6.0 operating systems
- 10.1" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass 3 and multi-touch PCAP control
- WLAN, BT, NFC & 4G LTE technologies for seamless communication
- Optional docking stations include vehicle, VESA, and desk docking stations
- Optional extension modules such as 1D/2D barcode scanners and a LAN+COM module
- Optional accessories include a stylus, hand strap, and shoulder strap
- Additional modules and accessories can be customized according to application requirements
Description
Advantech's AIM-58 is a medical-grade tablet that features a stylish appearance and advanced computing technologies to provide a superior device for mobile computing in healthcare environments.Specifications
| Display | |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Display technology | LCD |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
| Display brightness | 380 cd/m² |
| Display diagonal | 25.6 cm (10.1") |
| Display glass type | Corning Glass |
| HD type | Full HD |
| Processor | |
| Tjunction | 90 °C |
| Scenario Design Power (SDP) | 2 W |
| Processor threads | 4 |
| Processor series | Intel Atom x7 Series |
| Processor package size | 17 x 17 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cherry Trail |
| Processor code | SR2KG |
| Processor cache type | L3 |
| Number of execution units | 16 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 93362 |
| PCI Express configurations | 2x1, 1x2 |
| Processor manufacturer | Intel |
| Processor boost frequency | 2.56 GHz |
| Processor frequency | 1.6 GHz |
| Processor model | x7-Z8750 |
| Processor cores | 4 |
| Processor cache | 2 MB |
| Processor family | Intel Atom® |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Maximum internal memory | 8 GB |
| Storage | |
| Storage media | eMMC |
| Internal storage capacity | 64 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Camera | |
| Rear camera type | Single camera |
| Rear camera | Yes |
| Rear camera resolution (numeric) | 5 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Near Field Communication (NFC) | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Micro HDMI ports quantity | 1 |
| Docking connectors quantity | 1 |
| Sensors | |
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Electronic compass | Yes |
| Design | |
| International Protection (IP) code | IP65 |
| Device type | Mobile tablet |
| Form factor | Slate |
| Product colour | Black |
| Certification | CE, CB, VCCI, UL60950 (ITE), UL2054, UN38.3, IEC62133, FCC ID/PTCRB/R&TTE/SRRC/TELEC, FCC15 Class B, CE Mark (DOC Class B), REACH |
| Harmonized System (HS) code | 84713000 |
| Performance | |
| Operating system installed | Windows 10 IoT Enterprise |
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Electronic compass | Yes |
| Barcode reader | No |
| Technical details | |
| Device type | Mobile tablet |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Near Field Communication (NFC) | Yes |
| Form factor | Slate |
| Product colour | Black |
| Processor manufacturer | Intel |
| Compliance certificates | RoHS |
| Software | |
| Platform | Windows |
| Operating system installed | Windows 10 IoT Enterprise |
| Processor special features | |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Boot | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Embedded options available | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Battery | |
| Battery capacity | 26 Wh |
| Battery life (max) | 5.5 h |
| Battery recharge time | 3 h |
| Power | |
| AC adapter power | 65 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter output voltage | 19 V |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 18.3 mm |
| Height | 180.1 mm |
| Weight | 980 g |
| Certificates | |
| Certification | CE, CB, VCCI, UL60950 (ITE), UL2054, UN38.3, IEC62133, FCC ID/PTCRB/R&TTE/SRRC/TELEC, FCC15 Class B, CE Mark (DOC Class B), REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Operating vibration | 1 G |
| Operating shock | 20 G |
| Non-operating shock | 50 G |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Other features | |
| Processor ARK ID | 93362 |
| Processor manufacturer | Intel |
| Processor socket | BGA 1380 |
| Processor family | Intel Atom® |
| Harmonized System (HS) code | 84713000 |
