20 kVA, 20 kW, 40/70Hz, 65 dB, 333x847x1485mm, 245kg
- Galaxy VS UPS 20kW 400V, 1 internal 7Ah smart modular battery string, expandable to 2, Start-up 5x8
- Highly efficient, easy-to-deploy 20kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart modular battery string, expandable to 2 strings for extended runtime.

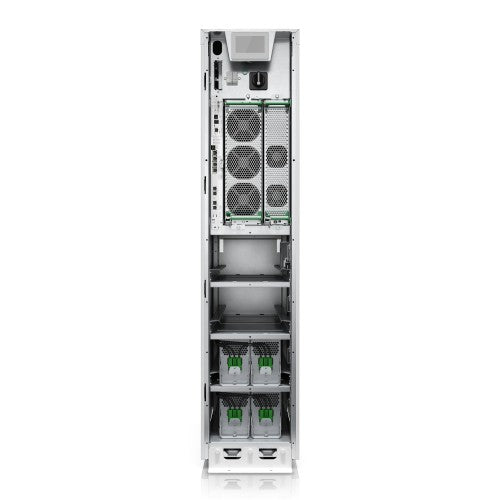

- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service

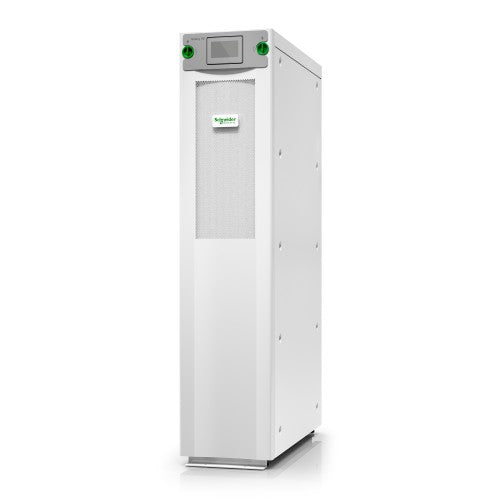

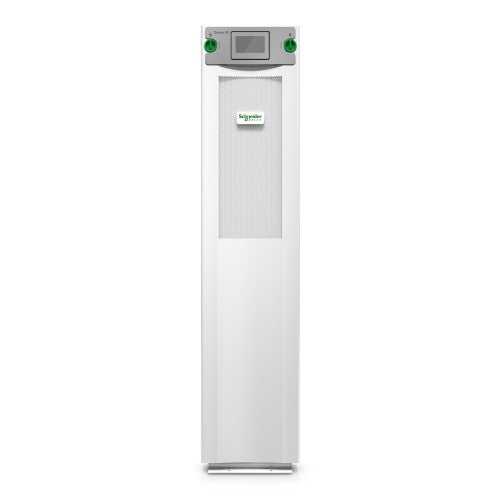

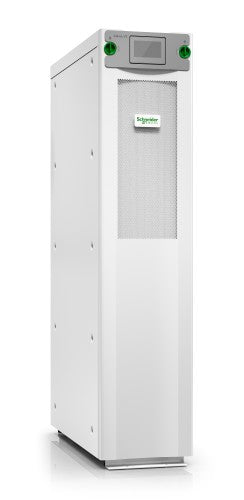

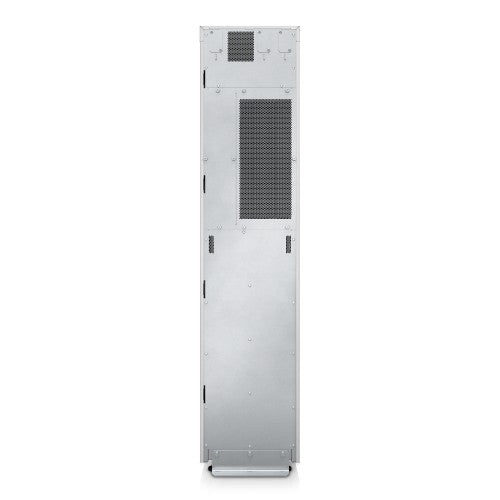

APC GVSUPS20KB2HS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Sale price
£8,372.87
Regular price
£10,995.20
Taxes included.
Shipping calculated at checkout.
Details
Description
GVSUPS20KB2HS Features- Galaxy VS UPS 20kW 400V, 1 internal 7Ah smart modular battery string, expandable to 2, Start-up 5x8
- Highly efficient, easy-to-deploy 20kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart modular battery string, expandable to 2 strings for extended runtime.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
Specifications
| Power | |
|---|---|
| Input power factor | 0.99 |
| Output power | 20000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 36 A |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 2.5:1 |
| Output power capacity | 20 kVA |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Output power | 20000 W |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 36 A |
| Power protection features | Overload, Short circuit |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Crest factor | 2.5:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 20 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| SmartSlot | Yes |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| Battery | |
| Battery voltage | 480 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| Product colour | White |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |

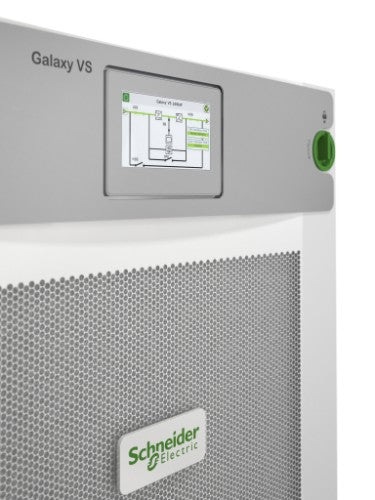

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1690 mm |
| Weight | 245 kg |
| Width | 333 mm |
| Package weight | 270 kg |
| Height | 1485 mm |
| Depth | 847 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1690 mm |
| Package weight | 270 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Packaging content | |
| Quick installation guide | Yes |
