4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 0 - 3 x USB - 0 - 0 - 0 - DisplayPort - Proprietary Interface - 1U - For Linux, Mac, PC

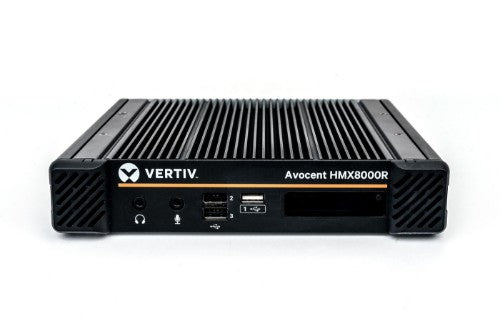

Vertiv Avocent HMX8000 Digital KVM Extender Receiver – Wired
MPN:
HMX8000R-400
Out of stock
Price excluding VAT:
Exc Vat £2,341.04
Price including VAT:
Inc Vat £2,809.25
Shipping calculated at checkout.
Details
Key Features
- 4K QUALITY: Pixel-perfect with zero latency at 4K 60Hz over a single fiber connection
- 10 GB ETHERNET CAPABILITY: It can support fiber connections
- REMOTE ACCESS: Ensure quality and security of critical devices when accessing them remotely
- FAST SWITCHING: Quickly access critical devices with less than a second switching
- BACKWARDS COMPATIBLE: Use with Vertiv Avocent HMX 5000/6000 switches without special modification
Description
The Vertiv Avocent HMX8000R - IP KVM Receiver (HMX8000R) is a high performance KVM extender that offers 4K video over a single fiber connection, along with audio and USB. Dual head 4K can be achieved with additional fiber connection. It delivers pixel-perfect, color accurate picture quality at 4K 60Hz and USB2.0 for fast switching. The 1U receiver enables users to locate critical computing hardware in secure, temperature-controlled environment, away from the user workstation to maintain component integrity. It provides access to system computers via a standard IP infrastructure network, allowing users the ability to share computing resources. System control is managed from a single access point through confirmed verification tools. This KVM system is ideal for demanding applications such as media, control rooms and collaborative environments. It is used in broadcasting, post-production and many other industries where high resolution and zero latency are required.Specifications
| Features | |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Cable types supported | Fiber |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Firmware upgradeable | Yes |
| Product colour | Black |
| Material | Metal |
| Easy to install | Yes |
| Plug and Play | Yes |
| USB 2.0 ports quantity | 5 |
| Supported resolutions | 4K @ 60 Hz (4096 x 2160) |
| Transmitter | |
| Number of displays supported | 2 |
| Receiver | |
| Receiver local video port type | DisplayPort |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video ports quantity | 2 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 5 |
| USB port type | USB Type-A |
| RJ-45 ports quantity | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| SFP/SFP+ slots quantity | 2 |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| AC adapter output current | 5 A |
| Power consumption (transmitter) (max) | 20 W |
| Weight & dimensions | |
| Transmitter width | 21.5 cm |
| Transmitter depth | 4.06 cm |
| Transmitter height | 21 cm |
| Transmitter weight | 1.81 kg |
| Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Other features | |
| Firmware upgradeable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
