USW-Pro-24-POE Gen 2, AC/DC, Internal, 450W, (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+, 442.4 x 285.4 x 43.7 mm
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

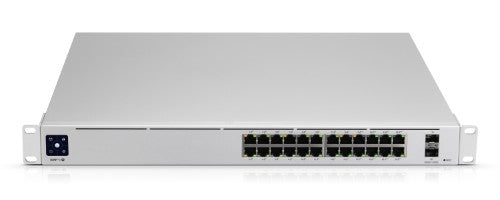

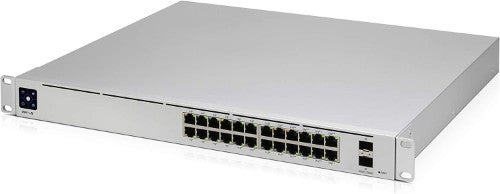

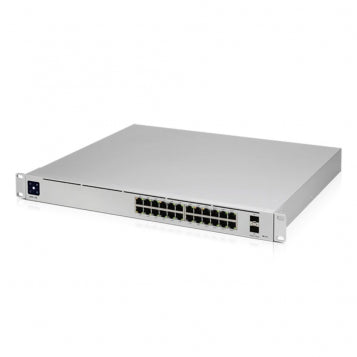

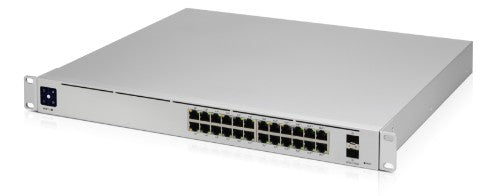

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
Sale price
£503.23
Regular price
£747.09
Taxes included.
Shipping calculated at checkout.
Details
Description
Second-Generation UniFi SwitchingWe’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IPv4 routes | 64 |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 44000 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 88 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 65.472 Mpps |
| Number of VLANs | 1000 |
| Security | |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Design | |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE, Speed, System |
| Rack mounting | Yes |
| Certification | CE, FCC, IC |
| Power | |
| Power consumption (max) | 450 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 1000 |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4.3 kg |
| Performance | |
| Packet buffer memory | 2 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Silver |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
| Certificates | |
| Certification | CE, FCC, IC |
| Indication | |
| LED indicators | Activity, Link, PoE, Speed, System |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
