Symmetra PX 48kW All-In-One Frame, 400V

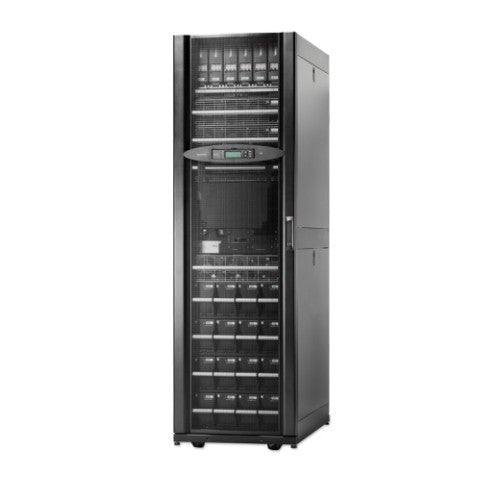

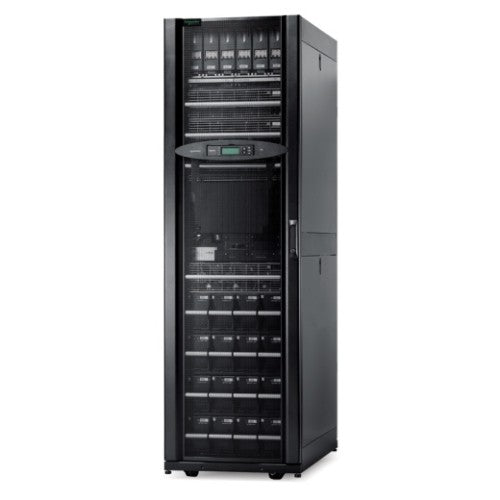

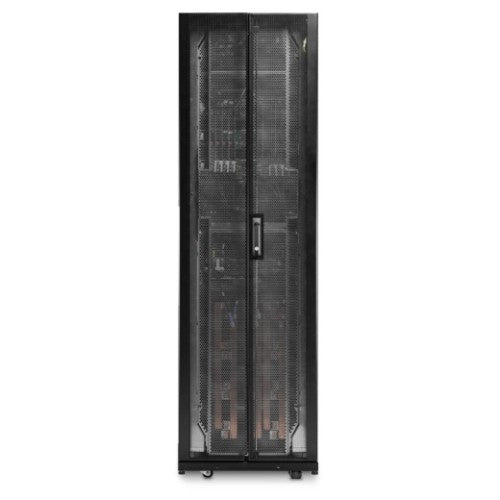

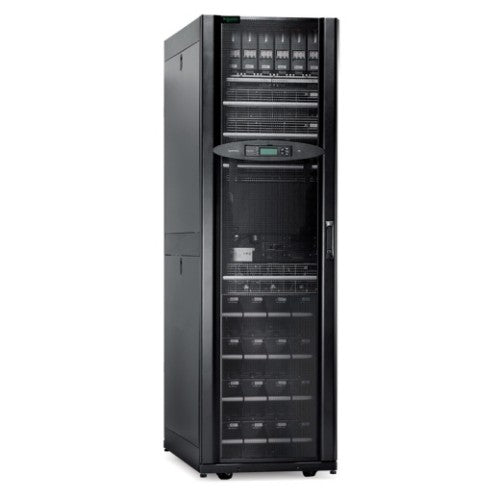

APC Symmetra PX 48kW All-In-One Frame, 400V
Sale price
£14,838.68
Regular price
£20,688.09
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Battery modules connected in parallel: Delivers higher availability through redundant batteries
- Battery replacement without tools: Enables fast battery replacement, lowering Mean Time to Repair (MTTR)
- Dual mains input: Increases availability by allowing the UPS to be connected to two separate power sources
- Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging
- Manageable external batteries: Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime
- Swappable batteries: Allows quick addition of runtime capacity or replacement of existing battery modules. Installed modules are automatically recognized by the system
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature
- 5x8 Start-up service included: Required for full coverage of factory warranty
- Fully-rated power kVA equals kW: Reduces cost by eliminating the need for an oversized UPS for Power Factor Corrected (PFC) loads
- Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling
- Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used
- Programmable frequency: Ensures compatibility with different input frequencies
- Scalable power capacity: Reduces UPS over-sizing costs today by allowing quick power upgrades, within the same footprint, later
- SmartSlot: Customize UPS capabilities with management cards
- EU CoC for UPS: Ensures that UPSs sold in the EU are highly efficient
- Network manageable: Provides remote power management of the UPS over the network
- Modular design: Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules
- Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault
- Redundant Intelligence Modules: Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions
- Swappable power modules: Allows quick addition of power capacity or replacement of existing power modules. Installed modules are automatically recognized by the system
- Power Modules connected in parallel: Enhances availability by allowing immediate, seamless recovery from isolated module failures
- User-replaceable power modules: Enables simple upgrades and replacements of the Power Modules
- User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Description
Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160 kW/160 kVA. Suitable for small, medium & large data centers applications.Specifications
| Power | |
|---|---|
| Output power | 48000 W |
| Input operation voltage (max) | 400 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 400 V |
| Maximum current | 98 A |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Output power capacity | 48 kVA |
| Three-phase output voltage supported | 380,400,415 V |
| Three-phase input voltage supported | 380,400,415 V |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Noise level | 61 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Output power | 48000 W |
| Input operation voltage (max) | 400 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 400 V |
| Maximum current | 98 A |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 61 dB |
| Output power capacity | 48 kVA |
| Three-phase output voltage supported | 380,400,415 V |
| Three-phase input voltage supported | 380,400,415 V |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Battery | |
| Battery capacity | 13824 VAh |
| Number of batteries supported | 4 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black, Grey |
| Certification | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, Eurobat General Purpose, ISO 14001, ISO 9001, VFI-SS-111 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1004.35 |
| Weight & dimensions | |
| Weight | 796 kg |
| Width | 600 mm |
| Height | 1991 mm |
| Depth | 1070 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, Eurobat General Purpose, ISO 14001, ISO 9001, VFI-SS-111 |
