13" Touchscreen Monitor, White Without Stand (Worldwide)

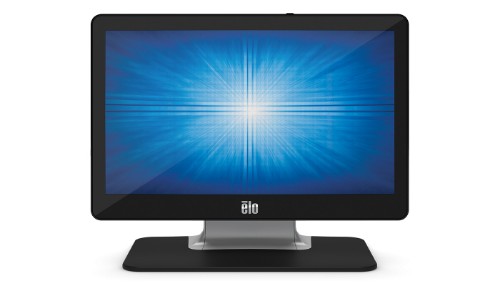

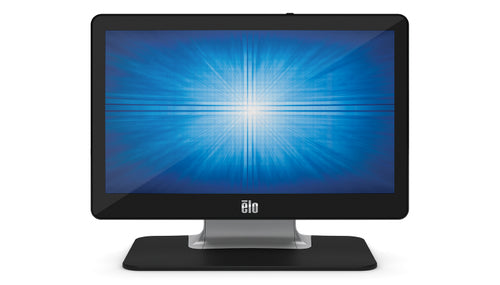

Elo Touch Solutions 1302L 33.8 cm (13.3") LCD 270 cd/m² Full HD White Touchscreen
£344.14
Taxes included.
Shipping calculated at checkout.
Details
Description
The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.Specifications
| Display | |
|---|---|
| Panel type | TFT |
| Display number of colours | 16.78 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 270 cd/m² |
| HD type | Full HD |
| Response time | 25 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 75 kHz |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| HDMI version | 1.3 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio | |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | White |
| Panel mounting interface | 75 x 75 mm |
| Certification | Australia RCM Canada cUL, IC China CCC Europe CE Japan VCCI Korea KCC Mexico NOM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE, REACH Russia EAC |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| International Protection (IP) code | IPX1 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | Yes |
| Power | |
| Power consumption (off) | 0.18 W |
| Power consumption (typical) | 9.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 326.1 mm |
| Height (with stand) | 259.6 mm |
| Depth (with stand) | 150 mm |
| Weight (with stand) | 2.32 kg |
| Packaging data | |
| Package width | 405 mm |
| Package depth | 160 mm |
| Package height | 280 mm |
| Package weight | 2.89 kg |
| Cables included | AC, HDMI, USB |
| Packaging content | |
| Cables included | AC, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | Australia RCM Canada cUL, IC China CCC Europe CE Japan VCCI Korea KCC Mexico NOM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE, REACH Russia EAC |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | AC |
| Panel type | TFT |
| Depth (without stand) | 25.1 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 1.22 kg |
| Height (without stand) | 211.3 mm |
| Weight (with stand) | 2.32 kg |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | AC |
| Panel type | TFT |
| Depth (without stand) | 25.1 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 1.22 kg |
| Height (without stand) | 211.3 mm |
| Width (with stand) | 326.1 mm |
| Viewable size, vertical | 16.5 cm |
| Viewable size, horizontal | 29.4 cm |
| Mean time between failures (MTBF) | 50000 h |
| Height (with stand) | 259.6 mm |
| Display technology | LCD |
| Depth (with stand) | 150 mm |
| Built-in camera | No |
| Audio input | 1 |
| Weight (with stand) | 2.32 kg |
