M4300-24XF, 480Gbps, 357 Mpps, 24x 10GBASE-X SFP+, 2x 10GBASE-T RJ-45, Mini-USB, RS-232, 212x44x345 mm

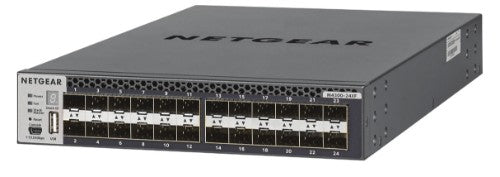

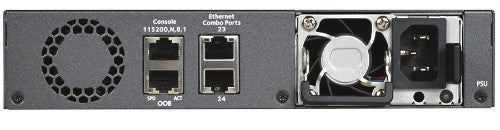

NETGEAR M4300-24XF Managed L3 1U Black, Grey
Sale price
£2,181.87
Regular price
£2,724.91
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 24-port 10GBASE-X (SFP+)
- 2-port 10GBASE-T (RJ45) (shared, back)
- 480Gbps non-blocking fabric across 24 ports
- Out-of-band 1G Ethernet management port
- Mini-USB and RJ45 RS232 console ports and USB storage port
- Full L3 feature set and non-stop forwarding (NSF) stacking
- Half-width form factor with one- and two-unit rack mount kit
- Two half-width switches can be installed in a single rack space for redundant topof-rack
- Ships with one modular APS250W PSU in its power supply slot
- Low acoustics (39.7dB @25°C / 77°F)
Description
The M4300 Stackable L3 Managed Switch Series comes with 40G, 10G and 1G models in a variety of form factors including PoE+ full provisioning. M4300 Switch Series delivers IPv4/IPv6 rich services for mid-enterprise edge and SMB core with mixed stacking between 40-, 10- and 1-Gigabit models. Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing. M4300 is ideal for server aggregation, wireless access, unified communications and Video-over-IP.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10GBASE-T |
| SFP+ module slots quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4093 |
| Jumbo frames | 9000 |
| Throughput | 357 Mpps |
| Latency (1 Gbps) | 2.333 µs |
| Latency (10 Gbps) | 1.323 µs |
| Number of static routes | 64 |
| Packet buffer memory | 32 MB |
| MAC address table | 16000 entries |
| Switching capacity | 480 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Performance | |
| Packet buffer memory | 32 MB |
| Stackable | Yes |
| Physical stacking (units) | 8 |
| Processor frequency | 800 MHz |
| Noise level | 39.7 dB |
| Mean time between failures (MTBF) | 968447 h |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Product colour | Black, Grey |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Noise level | 39.7 dB |
| Mean time between failures (MTBF) | 968447 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 10GBASE-X |
| Security | |
| BPDU filtering/protection | Yes |
| Access Control List (ACL) rules | 64 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| Memory | |
| Packet buffer memory | 32 MB |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black, Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power consumption (max) | 87.2 W |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Heat dissipation | 330.6 BTU/h |
| Weight & dimensions | |
| Width | 212 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.56 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
