M4300-48XF, 960 Gbps, 714 Mpps, 48x SFP+, 2x 10GBASE-T RJ-45, 250W PSU, 440x88x535 mm
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.

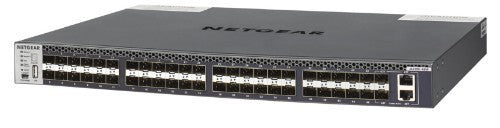

NETGEAR M4300-48XF Managed L3 Black
Sale price
£4,079.62
Regular price
£5,053.35
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 48-port 10GBASE-X (SFP+)
- 2-port 10GBASE-T (RJ45) (shared)
- 960Gbps non-blocking fabric across 48 ports
- Out-of-band 1G Ethernet Management port
- Mini-USB and RJ45 RS232 console ports and USB storage port
- Full L3 feature set and non-stop forwarding (NSF) stacking
- Full width form factor with one-unit rack mount kit
- Ships with one modular APS250W PSU in first power supply slot
- Ship with a blank cover in the second power supply slot
- Low acoustics (42.4dB @25°C / 77°F)
Description
The world’s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| IP routing | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Virtual LAN features | Private VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Number of multicast groups filtered | 4000 |
| Number of VLANs | 4093 |
| Jumbo frames | 9000 |
| Throughput | 714 Mpps |
| Number of static routes | 64 |
| Packet buffer memory | 56 MB |
| MAC address table | 128000 entries |
| Switching capacity | 960 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 56 MB |
| Stackable | Yes |
| Physical stacking (units) | 8 |
| Processor frequency | 800 MHz |
| Noise level | 42.4 dB |
| Mean time between failures (MTBF) | 657392 h |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Physical stacking (units) | 8 |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Noise level | 42.4 dB |
| Mean time between failures (MTBF) | 657392 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 48 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Multicast features | |
| Number of multicast groups filtered | 4000 |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, OSPFv3, RIP, RIP-1, RIP-2 |
| Memory | |
| Packet buffer memory | 56 MB |
| Internal memory | 1024 MB |
| Design | |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power consumption (max) | 152.4 W |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Heat dissipation | 577.8 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 535 mm |
| Height | 88 mm |
| Weight | 5.86 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
