Open Frame Self-Service Kiosk, 31.5"P T/S, Pentium N4200, 4GB RAM, Thermal printer, 2D barcode, NFC, SCR, MSR

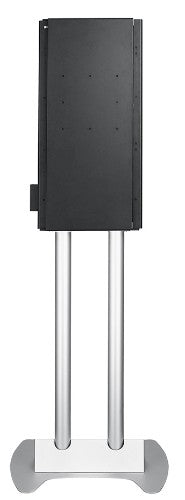

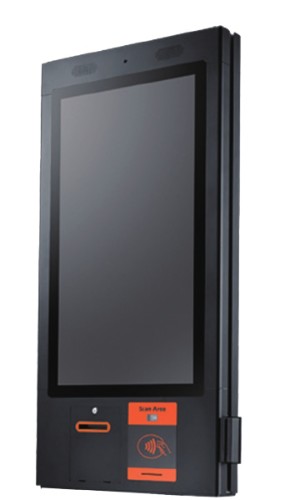

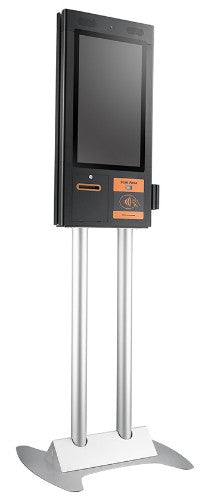

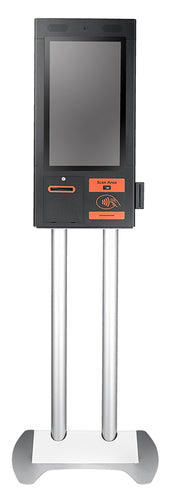

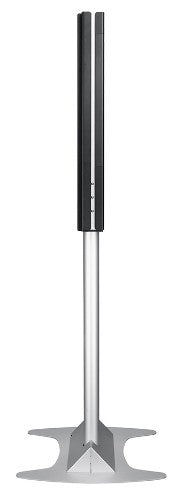

Advantech UTC-723GP-VFK0E POS system All-in-One 1.1 GHz N4200 80 cm (31.5") 1920 x 1080 pixels Touchscreen Black
£2,543.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Low power consumption and fanless design
- Built-in 21.5/31.5" open-frame panel PC
- Built-in Intel ® Celeron ® J1900 processor (UTC-720D)
- Built-in Intel ® CoreTM i5-6300U processor (UTC-720F)
- Built-in Intel ® Pentium ® N4200 processor (UTC-720G)
- 16:9 widescreen display with 1920 x 1080 resolution
- IP65-rated front panel for water and dust resistance
- Side-open design and recessed cable routing for easy management
- VESA 200mm standard mounting holes for varied mounting demands
- Support pole, ceiling, and wall mounting
- Support Windows, Android, and Linux operating systems
- Integrated components, including a thermal printer, a barcode scanner
- a NFC/RFID reader, a smart card reader, and a MSR
Description
Advantech UTC-720 is a multipurpose interactive kiosk system that features a beautiful 21.5/31.5" panel PC integrated into a slim steel chassis. Built for 24/7 operation, UTC-720 is durable and high-performance. Powered by a sixth-generation Intel ® processor and equipped with up to 16GB of memory, the UTC-720 series deliver excellent performance to support various self-service applications. It also supports multiple OS, rich I/O ports, as well as the ability to integrate diverse optional peripherals, making it ideal for use as interactive self-service kiosk for any public and commercial applications.Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Touchscreen technology | Projected capacitive system |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 80 cm (31.5") |
| Display brightness | 350 cd/m² |
| Display type | TFT |
| Processor | |
| Processor cores | 4 |
| Processor cache | 2 MB |
| Processor threads | 4 |
| Processor frequency | 1.1 GHz |
| Processor family | Intel® Pentium® |
| Processor model | N4200 |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Internal memory | 4 GB |
| Memory clock speed | 1867 MHz |
| Storage | |
| Storage media type | HDD |
| HDD size | 2.5" |
| HDD interface | SATA |
| Number of storage drives supported | 1 |
| Graphics | |
| Graphics adapter manufacturer | Intel |
| Graphics adapter | HD Graphics 505 |
| Features | |
| Certification | IP65/ NEMA4 CE, FCC |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Hard drive | |
| Storage media type | HDD |
| HDD size | 2.5" |
| HDD interface | SATA |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Video | |
| Graphics adapter manufacturer | Intel |
| Graphics adapter | HD Graphics 505 |
| Design | |
| Product colour | Black |
| Chassis type | All-in-One |
| Power | |
| Power supply | 84 W |
| Power consumption (typical) | 45 W |
| AC adapter output voltage | 12 - 24 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | IP65/ NEMA4 CE, FCC |
| Ergonomics | |
| VESA mounting | Yes |
| Product colour | Black |
| Wall mountable | Yes |
| Panel mounting interface | 200 x 200 mm |
| Scanning | |
| Scanner type | 2D |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Weight & dimensions | |
| Width | 534.8 mm |
| Depth | 98.3 mm |
| Height | 1054.2 mm |
| Weight | 38 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| POS printer included | Yes |
| Barcode reader | Yes |
| Technical details | |
| Product colour | Black |
| Wall mountable | Yes |
| Panel mounting interface | 200 x 200 mm |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Chassis type | All-in-One |
