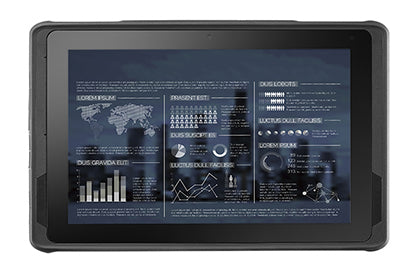

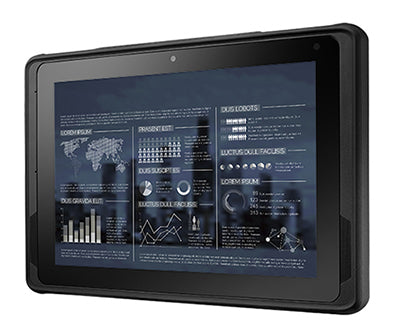

10.1", Intel® Atom™ x7-Z8750, 4 GB, 64 GB eMMC, NFC, Wi-Fi/BT, 5MP & 2MP, GPS, IP65, Android
Advantech AIM-68 4G Intel Atom® LTE 64 GB 25.6 cm (10.1") 4 GB Wi-Fi 5 (802.11ac) Android 6.0 Black
£1,449.14
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Intel® AtomTM processor with Windows 10 IoT & Android 6.0 operating systems
- 10.1" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass 3 and multi-touch PCAP control
- WLAN, BT, NFC & 4G LTE technologies for seamless communication
- Optional docking stations include vehicle, VESA, and desk docking stations
- Optional extension modules such as 1D/2D barcode scanners and a LAN+COM module
- Optional accessories include a stylus, hand strap, and shoulder strap
- Additional modules and accessories can be customized according to application requirements
Description
10.1" Industrial Tablet with Intel® AtomTM Processor.Specifications
| Display | |
|---|---|
| Display resolution | 1200 x 1920 pixels |
| Display technology | LCD |
| Touch technology | Multi-touch |
| Touchscreen type | Projected Capacitive (PCAP) |
| Display brightness | 800 cd/m² |
| Display diagonal | 25.6 cm (10.1") |
| Display glass type | Gorilla Glass |
| HD type | Full HD |
| Processor | |
| Tjunction | 90 °C |
| Scenario Design Power (SDP) | 2 W |
| Processor threads | 4 |
| Processor series | Intel Atom x7 Series |
| Processor package size | 17 x 17 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cherry Trail |
| Processor code | SR2KG |
| Processor cache type | L3 |
| Number of execution units | 16 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 93362 |
| PCI Express configurations | 2x1, 1x2 |
| Processor manufacturer | Intel |
| Processor boost frequency | 2.56 GHz |
| Processor frequency | 1.6 GHz |
| Processor model | x7-Z8750 |
| Processor cores | 4 |
| Processor cache | 2 MB |
| Processor family | Intel Atom® |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | LPDDR3-SDRAM |
| Storage | |
| Storage media | eMMC |
| Internal storage capacity | 64 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
| Rear camera type | Single camera |
| Flash type | LED |
| Rear camera | Yes |
| Rear camera resolution (numeric) | 5 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Auto focus | Yes |
| Video recording | Yes |
| Rear camera flash | Yes |
| Network | |
| Mobile network connection | Yes |
| Mobile network generation | 4G |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| 4G standard | LTE |
| Near Field Communication (NFC) | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Docking connector type | USB |
| Headphone out | Yes |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 2 |
| Micro HDMI ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Navigation | |
| GPS (satellite) | Yes |
| Sensors | |
| Electronic compass | Yes |
| Proximity sensor | Yes |
| Design | |
| International Protection (IP) code | IP65 |
| Device type | Mobile tablet |
| Form factor | Slate |
| Product colour | Black |
| Certification | FCC ID, TELEC, NCC, SRRC, RCM UL, CB, LVD + CE, FCC, IC, VCCI, BSMI |
| Harmonized System (HS) code | 84713000 |
| Performance | |
| Operating system installed | Android 6.0 |
| Position location | Yes |
| GPS (satellite) | Yes |
| Electronic compass | Yes |
| Proximity sensor | Yes |
| Barcode reader | No |
| Technical details | |
| Device type | Mobile tablet |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Near Field Communication (NFC) | Yes |
| Form factor | Slate |
| Product colour | Black |
| Processor manufacturer | Intel |
| Sustainability certificates | ENERGY STAR |
| Software | |
| Platform | Android |
| Operating system installed | Android 6.0 |
| Processor special features | |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Boot | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Embedded options available | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Battery | |
| Battery capacity | 26 Wh |
| Battery life (max) | 5.5 h |
| Battery recharge time | 3 h |
| Power | |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 18.3 mm |
| Height | 180.1 mm |
| Weight | 980 g |
| Certificates | |
| Certification | FCC ID, TELEC, NCC, SRRC, RCM UL, CB, LVD + CE, FCC, IC, VCCI, BSMI |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Operating vibration | 1 G |
| Operating shock | 20 G |
| Non-operating shock | 50 G |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Other features | |
| Processor ARK ID | 93362 |
| Processor manufacturer | Intel |
| Processor socket | BGA 1380 |
| Processor family | Intel Atom® |
| Harmonized System (HS) code | 84713000 |
