10.1" Industrial Tablet-Based Mini POS System, Intel ® AtomTM x5-Z8350, 4GB, 64GB, WiFi, Bluetooth, 5MP & 2MP, Win10 IOT Enterpris, Gray/Black
(MTBF) of up to 12,000 hours. The system design is surprisingly thin (17 mm) with an IP54-rated front panel protection from water and dust, as well as a directly bonded touchscreen
with water tolerance and palm rejection for enhanced operation. AIM-37 also supports multiple OS and optional modules configurations for flexible operations. Additionally, AIM-37
can be integrated with various peripherals and flexible installation mounts to support diverse applications.
Advantech AIM-37 Tablet 1.44 GHz x5-Z8350 25.6 cm (10.1") 1280 x 800 pixels Touchscreen Black, Grey
£781.29
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Industrial-Grade Panel with Anti-Glare, Anti-Fingerprint LCD display supports MTBF up to 12,000 hours
- Equipped Gorilla ® Glass 3 against scratch
- Built-in 2MP front camera and 5MP back camera
- IP54-Rated with water tolerance enhances operation
- Supports glove and stylus with palm detection to expand usability
- Built-in NFC Reader for various service
- Optional Bulit-in MSR / IC card reader/ 2D barcode scanner
- Expandability USB 2.0 Pogo Pins
- Battery supports up to 8 hours operation
- Support 75 cm native free drop protection without external protection
- Supports Android 6.0.1 & Windows 10 IoT Enterprise Operating Systems

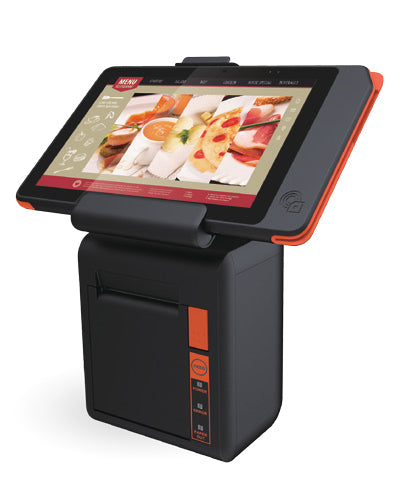

- Swivel charging cradle with 80mm thermal printer
- USB.COM port, cash drawer expansion
Description
AIM-37 is an industrial-grade mobile point-of-sale (mPOS) system with a built-in barcode scanner and HD Corning ® Gorilla ® Glass display offering a mean time between failures(MTBF) of up to 12,000 hours. The system design is surprisingly thin (17 mm) with an IP54-rated front panel protection from water and dust, as well as a directly bonded touchscreen
with water tolerance and palm rejection for enhanced operation. AIM-37 also supports multiple OS and optional modules configurations for flexible operations. Additionally, AIM-37
can be integrated with various peripherals and flexible installation mounts to support diverse applications.
Specifications
| Display | |
|---|---|
| Touchscreen technology | Projected capacitive system |
| Touchscreen | Yes |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 25.6 cm (10.1") |
| Display brightness | 350 cd/m² |
| Display type | IPS |
| Processor | |
| Processor cores | 4 |
| Processor cache | 2 MB |
| Processor threads | 4 |
| Processor frequency | 1.44 GHz |
| Processor family | Intel Atom® |
| Processor model | x5-Z8350 |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Internal memory | 4 GB |
| Storage | |
| Total storage capacity | 64 GB |
| Storage media type | eMMC |
| Storage media | eMMC |
| Flash memory | 64 GB |
| Features | |
| Certification | CE/FCC/CB/UL/NCC/BSMI/CCC IP54 |
| Harmonized System (HS) code | 84715000 |
| Multimedia | |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Network | |
| Ethernet LAN | No |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Hard drive | |
| Total storage capacity | 64 GB |
| Storage media type | eMMC |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Near Field Communication (NFC) | Yes |
| Design | |
| Product colour | Black, Grey |
| Chassis type | Tablet |
| Software | |
| Operating system installed | Windows 10 IoT Enterprise |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | CE/FCC/CB/UL/NCC/BSMI/CCC IP54 |
| Ergonomics | |
| Product colour | Black, Grey |
| Mean time between failures (MTBF) | 12000 h |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Weight & dimensions | |
| Width | 290 mm |
| Depth | 17.4 mm |
| Height | 176 mm |
| Weight | 900 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Barcode reader | Yes |
| Technical details | |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Product colour | Black, Grey |
| Quantity per pack | 1 pc(s) |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Endurance | |
| Mean time between failures (MTBF) | 12000 h |
| Other features | |
| Chassis type | Tablet |
