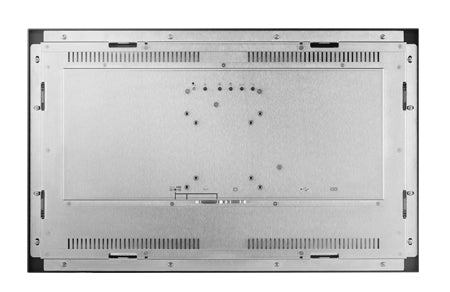

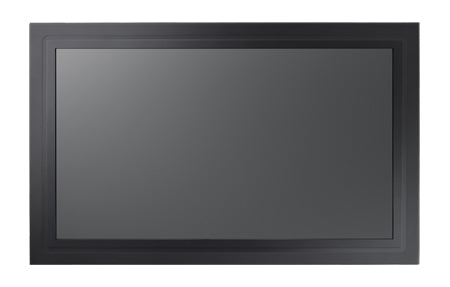

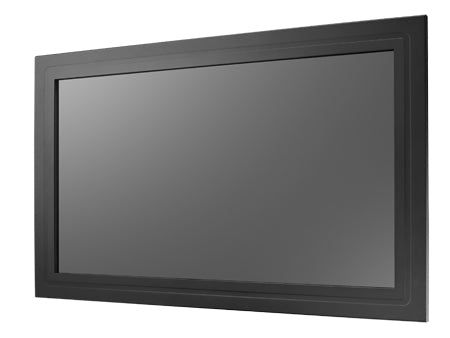

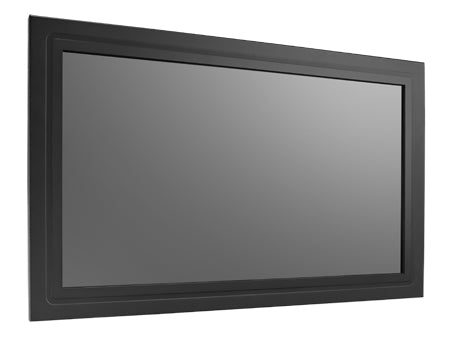

IDS-3221W - 21.5" Full HD, 1920 x 1080, VGA/DVI/HDMI interface, Panel Mount Monitor, 5-wire Resistive touch
Advantech IDS-3221WR 54.6 cm (21.5") LCD 250 Nits Full HD Black Touchscreen
£613.60
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 0 ~ 45° C range operating temperature
- Flexible signal interface: VGA, DVI & HDMI
- Integrated bracket for easy installation
- Versatile mounting methods for rear mounting and VESA mounting
- Anti-Reflective surface treatment for sunlight readable enhancement (optional)
Description
The Advantech IDS-3221W Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.Specifications
| Display | |
|---|---|
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 Nits |
| HD type | Full HD |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Panel life | 30000 h |
| Native aspect ratio | 16:9 |
| Ports & interfaces | |
| Wi-Fi | No |
| Ethernet LAN | No |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) input ports | 1 |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Placement supported | Indoor |
| Product colour | Black |
| Certification | CE/FCC/CCC |
| VESA mounting | Yes |
| Power | |
| Power consumption (typical) | 17.45 W |
| Performance | |
| Wi-Fi | No |
| Panel life | 30000 h |
| Weight & dimensions | |
| Width | 551 mm |
| Depth | 51.7 mm |
| Height | 341.6 mm |
| Weight | 6.7 kg |
| Packaging data | |
| Package weight | 8.5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE/FCC/CCC |
| Technical details | |
| VESA mounting | Yes |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Wi-Fi | No |
| Display technology | LCD |
