1100 VA, 880 W, 220 - 240 V, 50/60 Hz, USB/RS232/RJ-11, 4 IEC 320 C13, Black
The Vision range uses Line Interactive technology and provides a sinusoidal output. This technology provides efficiency levels of 98% and therefore reduced energy consumption. It also ensures a high level of protection against mains power disturbances. The automatic voltage regulator (AVR) provides protection from surges, overvoltages and undervoltages, without battery intervention. Reduced battery usage ensures that the battery set is 100% available for mains power supply failures and is able to provide greater autonomy. EMI filters then provide further protection from voltage surges and transients.
When the mains power supply fails, the load is powered by the inverter and receives a perfectly sinusoidal supply for maximum power continuity and reliability. With energy savings in mind, the Vision range features a shut-off button to reduce energy consumption to zero during periods of prolonged inactivity.
High availability
An EnergyShare socket allows loadshedding and the shutdown of less sensitive peripheral devices to extend battery runtime for critical loads. "Hot Swap" batteries can be removed via the front panel for easy and safe UPS maintenance. Battery test facility to detect deteriorating battery performance. Deep discharge protection to reduce battery ageing.
Versatility
Cold Start function to allow the UPS to power up with no mains power supply present.
LCD display
Vision models have a backlit LCD display providing UPS status information, load and battery performance.
Advanced communications
- Multi-platform communication for all operating systems and network environments: PowerShield3 supervision and shutdown software for Windows operating systems 8, 7, 2008, Vista, 2003, XP, Linux, Mac OS X, Sun Solaris, VMware ES X and other Unix operating systems;
- USB or RS232 serial port interface (selectable);
- Expansion slot for interface boards;
- status, measurements, alarms and input, output and battery parameters available on LCD display.
Features
- EnergyShare socket;
- Ability to switch on the UPS in the absence of mains power (Cold Start);
- Batteries are user replaceable without switching off equipment and without interruption to the load (Hot Swap);
- Maximum reliability and protection of PC s thanks to PowerShield3 monitoring and shutdown software, which can be downloaded free;
- Fully configurable using UPS Tools configuration software;
- Highly reliable batteries (automatic and manually-activated battery test);
- Built-in short circuit protection;
- Auto restart (when mains power is restored, after discharge of the batteries);
- GS/Nemko safety mark.

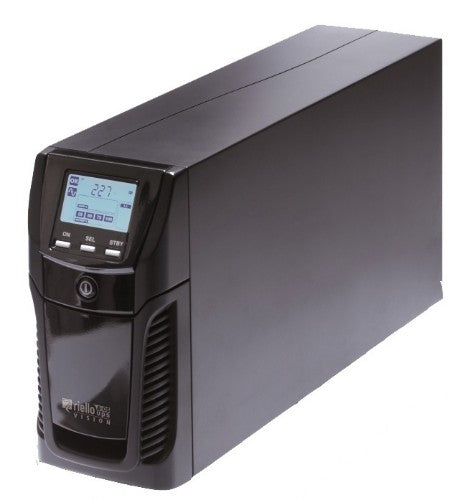

Riello VST 1100 uninterruptible power supply (UPS) 1.1 kVA 880 W 4 AC outlet(s)
Sale price
£283.66
Regular price
£455.00
Taxes included.
Shipping calculated at checkout.
Details
Description
Superior protectionThe Vision range uses Line Interactive technology and provides a sinusoidal output. This technology provides efficiency levels of 98% and therefore reduced energy consumption. It also ensures a high level of protection against mains power disturbances. The automatic voltage regulator (AVR) provides protection from surges, overvoltages and undervoltages, without battery intervention. Reduced battery usage ensures that the battery set is 100% available for mains power supply failures and is able to provide greater autonomy. EMI filters then provide further protection from voltage surges and transients.
When the mains power supply fails, the load is powered by the inverter and receives a perfectly sinusoidal supply for maximum power continuity and reliability. With energy savings in mind, the Vision range features a shut-off button to reduce energy consumption to zero during periods of prolonged inactivity.
High availability
An EnergyShare socket allows loadshedding and the shutdown of less sensitive peripheral devices to extend battery runtime for critical loads. "Hot Swap" batteries can be removed via the front panel for easy and safe UPS maintenance. Battery test facility to detect deteriorating battery performance. Deep discharge protection to reduce battery ageing.
Versatility
Cold Start function to allow the UPS to power up with no mains power supply present.
LCD display
Vision models have a backlit LCD display providing UPS status information, load and battery performance.
Advanced communications
- Multi-platform communication for all operating systems and network environments: PowerShield3 supervision and shutdown software for Windows operating systems 8, 7, 2008, Vista, 2003, XP, Linux, Mac OS X, Sun Solaris, VMware ES X and other Unix operating systems;
- USB or RS232 serial port interface (selectable);
- Expansion slot for interface boards;
- status, measurements, alarms and input, output and battery parameters available on LCD display.
Features
- EnergyShare socket;
- Ability to switch on the UPS in the absence of mains power (Cold Start);
- Batteries are user replaceable without switching off equipment and without interruption to the load (Hot Swap);
- Maximum reliability and protection of PC s thanks to PowerShield3 monitoring and shutdown software, which can be downloaded free;
- Fully configurable using UPS Tools configuration software;
- Highly reliable batteries (automatic and manually-activated battery test);
- Built-in short circuit protection;
- Auto restart (when mains power is restored, after discharge of the batteries);
- GS/Nemko safety mark.
Specifications
| Power | |
|---|---|
| Output frequency regulation | 50 - 60 Hz |
| Output power | 880 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output power capacity | 1.1 kVA |
| Performance | |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Number of phases | 1 |
| Power protection features | Battery discharge, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Noise level | 40 dB |
| Features | |
| Waveform | Sine |
| Output frequency regulation | 50 - 60 Hz |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power | 880 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Power protection features | Battery discharge, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Noise level | 40 dB |
| Output power capacity | 1.1 kVA |
| Input frequency | 50/60 Hz |
| Number of phases | 1 |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Battery | |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 6 h |
| Typical backup time at full load | 9 min |
| Design | |
| Product colour | Grey |
| Safety | EN 62040-1-1 and Directive 2006/95/EC |
| Certification | EN 62040-2 and Directive 2004/108 EC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Package width | 208605 mm |
| Package depth | 530 mm |
| Package height | 342 mm |
| Weight | 11.3 kg |
| Width | 120 mm |
| Package weight | 13 kg |
| Height | 247 mm |
| Depth | 443 mm |
| Packaging data | |
| Package width | 208605 mm |
| Package depth | 530 mm |
| Package height | 342 mm |
| Package weight | 13 kg |
| Certificates | |
| Safety | EN 62040-1-1 and Directive 2006/95/EC |
| Certification | EN 62040-2 and Directive 2004/108 EC |
| Other features | |
| Number of phases | 1 |
