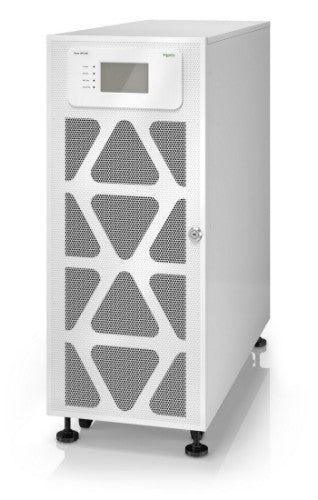

Easy UPS 3M 60kVA 400V 3:3 UPS for external batteries, Start-up 5x8, Double Conversion Online
Includes: Dust filter, Installation guide, Start-Up Service.
APC E3MUPS60KHS uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 60000 W
£7,989.78
Taxes included.
Shipping calculated at checkout.
Details
Description
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service.Includes: Dust filter, Installation guide, Start-Up Service.
Specifications
| Power | |
|---|---|
| Input power factor | 0.99 |
| Output power | 60000 W |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 104 A |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 60 kVA |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| LED indicators | Yes |
| Noise level | 65 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Output power | 60000 W |
| Input operation voltage (min) | 342 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Maximum current | 104 A |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 65 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 60 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Battery | |
| Cold start | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | White |
| Certification | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1476.3 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Package width | 475 mm |
| Package depth | 965 mm |
| Package height | 1140 mm |
| Weight | 109 kg |
| Width | 360 mm |
| Package weight | 133 kg |
| Height | 915 mm |
| Depth | 850 mm |
| Packaging data | |
| Package width | 475 mm |
| Package depth | 965 mm |
| Package height | 1140 mm |
| Package weight | 133 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4 |
