2295L, 21.5", TFT LCD, PCAP, 1920x1080, 16:9, 14 ms, USB, RJ-45, HDMI, VGA, DP, 516x311x46.9 mm
Brighten Up Your Kiosks
Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.
Built for Industrial & Commercial Use
We pride ourselves on being a leading manufacturer in the market — designing and building the complete solution with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product, and to maximize your ROI.

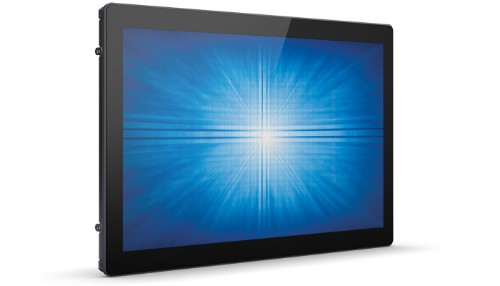

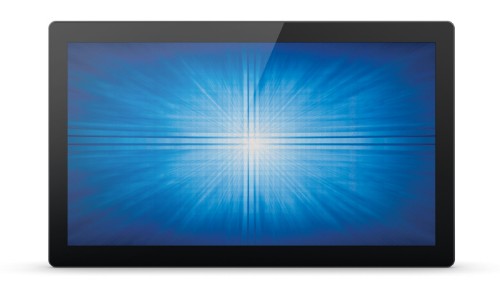

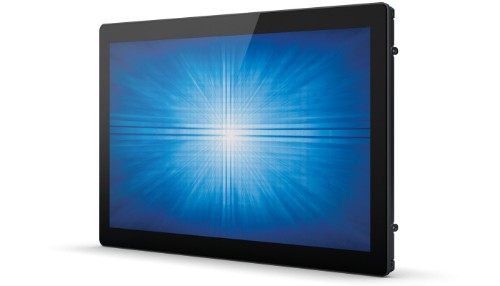

Elo Touch Solutions 2295L 54.6 cm (21.5") LED 400 cd/m² Full HD Black Touchscreen
£507.60
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Built-in thermal protection via internal thermal sensor and firmware
- Compliant with UL-60950, IK-07 impact testing and GLI ESD 27kV air / 8kV contact
- OEM life cycle support for component and product transitioning
- Well-suited for 24/7 use in any high-traffic or harsh environment
- Designed and tested to ensure reliability and long life in the field
Description
Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.Brighten Up Your Kiosks
Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.
Built for Industrial & Commercial Use
We pride ourselves on being a leading manufacturer in the market — designing and building the complete solution with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product, and to maximize your ROI.
Specifications
| Display | |
|---|---|
| Panel type | TFT |
| Display number of colours | 16.78 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| HD type | Full HD |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Vertical scan range | 50 - 75 Hz |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 82 kHz |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| HDMI version | 1.3 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Certification | RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (off) | 0.2 W |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 190 mm |
| Package height | 423 mm |
| Package weight | 8.6 kg |
| Quick start guide | Yes |
| Cables included | HDMI, USB, VGA |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | HDMI, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | AC |
| Panel type | TFT |
| Depth (without stand) | 46.9 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 5.41 kg |
| Height (without stand) | 311 mm |
| Full HD | Yes |
| Display viewable area (HxV) | 476.06 x 267.79 mm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | AC |
| Panel type | TFT |
| Depth (without stand) | 46.9 mm |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 5.41 kg |
| Height (without stand) | 311 mm |
| Display viewable area (HxV) | 476.06 x 267.79 mm |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LED |
| Built-in microphone | No |
| Built-in camera | No |
| Quick start guide | Yes |
| Maximum refresh rate | 60 Hz |
