Open Frame PCAP 10 point touch screen equipped with touch through glass function
iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function
Sale price
£400.00
Regular price
£447.36
Taxes included.
Shipping calculated at checkout.
Details
Reasons To Buy
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.Foam Seal
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.Open frame brackets

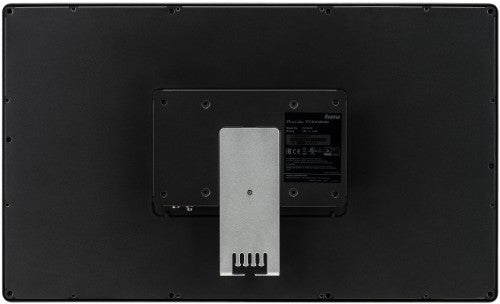

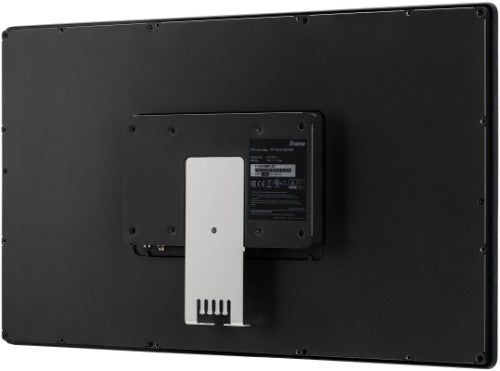

This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.Description

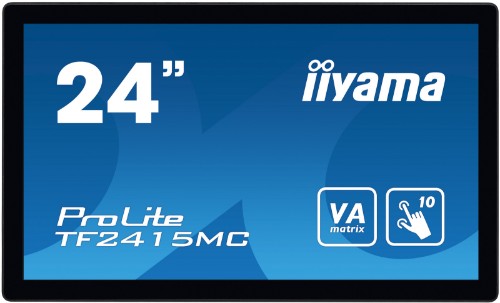

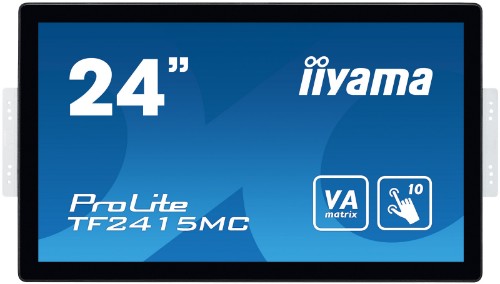

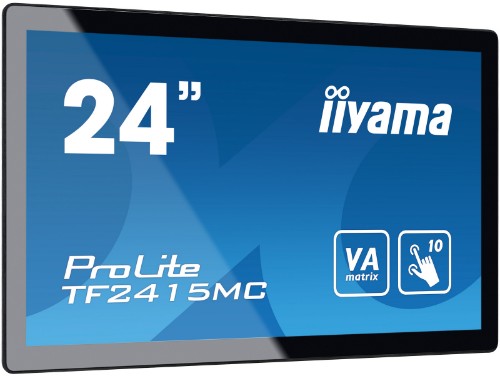

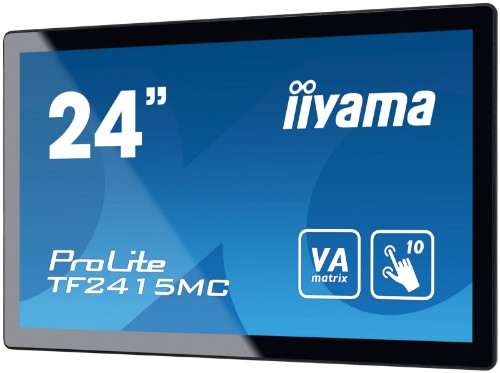

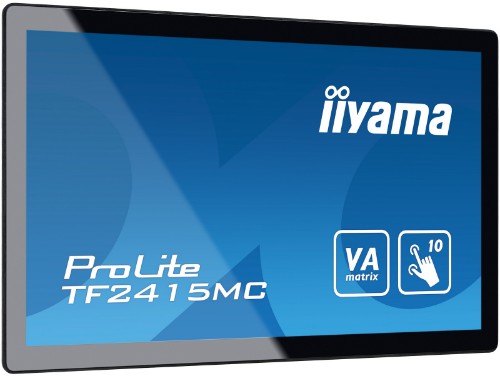

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Vertical scan range | 56 - 75 Hz |
| Aspect ratio | 16:9 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Separate H/V sync | Yes |
| Display resolution | 1920 x 1080 pixels |
| Response time | 16 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 3000:1 |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | VA |
| Display diagonal (metric) | 60.5 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 315 cd/m² |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| OmniTapps Multitouch compatibility | No |
| Management features | |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Audio output | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 347 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 575 mm |
| Placement supported | Horizontal/Vertical |
| HDMI | Yes |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Built-in microphone | No |
| Product colour | Black |
| Front bezel colour | Black |
| Power supply type | External |
| Weight (with stand) | 5.8 kg |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 1.06 W |
| Power consumption (typical) | 24.4 W |
| Power consumption (off) | 0.32 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 22 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 378595 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Height (without stand) | 347 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 575 mm |
| Width (with stand) | 575 mm |
| Depth (with stand) | 42.5 mm |
| Height (with stand) | 347 mm |
| Weight (with stand) | 5.8 kg |
| Weight (without stand) | 5.8 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| AC adapter included | Yes |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 378595 |
| Packaging data | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Other features | |
| AC adapter included | Yes |
| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| International Protection (IP) code | IP65 |
| Glass protection | Yes |
| Full HD | Yes |
| Height (without stand) | 347 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 575 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
