StarTech.com Dual TV Ceiling Mount, Hanging 2 Screen VESA Pole Mount for 32”-75" Displays - Height Adjustable Telescopic Pole

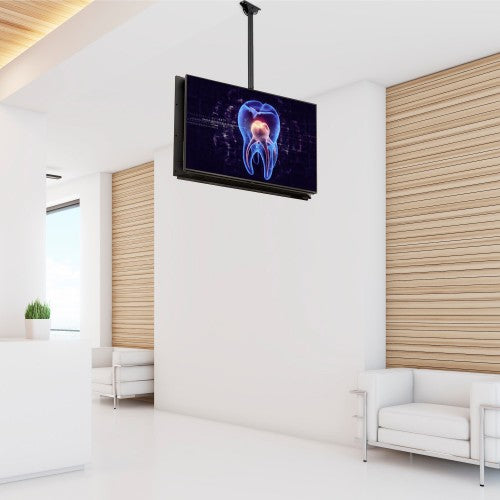

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment

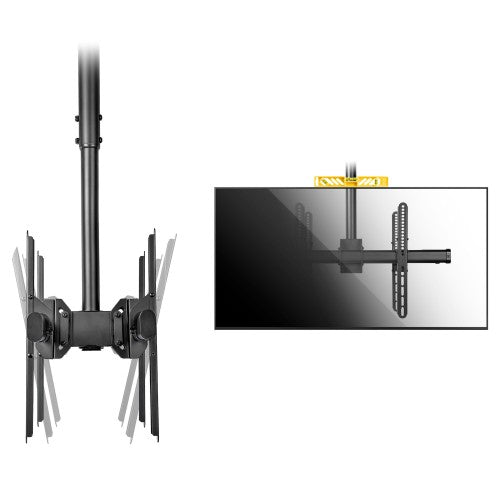

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays
MPN:
FPCEILBTB
Out of stock
Price excluding VAT:
Exc Vat £187.38
Price including VAT:
Inc Vat £224.86
Shipping calculated at checkout.
Details
Key Features
- BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays incl. curved TVs up to 75" (110lb/50kg) per screen; Height adjustable pole, 3.5' (1,0m) to 5.0' (1,5m) from ceiling
- WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360° around the telescopic pole, and individually rotated +/-3° & tilted +5/-20°; TV position secured w/ provided tools
- VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
- COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- TIDY AESTHETIC: The double television ceiling mount for two large displays provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications
Description
Dual Display Mount | Full Motion | For 32" to 75" DisplaysCreate impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 45 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 90 kg |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 2 |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 190.5 cm (75") |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 1060 - 1560 mm |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -20 - 5° |
| Angle of rotation | 360° |
| Adjustable | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 680 mm |
| Height | 835 mm |
| Weight | 9.8 kg |
| Depth (max) | 68 cm |
| Package width | 310 mm |
| Package depth | 935 mm |
| Package height | 145 mm |
| Package weight | 10.8 kg |
| Packaging data | |
| Package width | 310 mm |
| Package depth | 935 mm |
| Package height | 145 mm |
| Package weight | 10.8 kg |
| Packaging content | |
| Wrench included | Yes |
| Washers included | Yes |
| Spacer included | Yes |
| Screws included | Yes |
| Nuts included | Yes |
| Number of washers included | 12 |
| Number of spacers included | 32 |
| Number of screws | 46 |
| Number of nuts | 2 |
| Manual | Yes |
| Technical details | |
| Angle of rotation | 360° |
| Number of displays supported | 2 |
| Mounting type | Ceiling |
| Adjustable | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 965 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
