48-port 10/100/1000T, 4-port 100/1000X SFP Gigabit Ethernet Managed switch, 1 Fixed AC power supply, EU Power Cord
Overview
Allied Telesis GS980M Series switches provide an excellent access solution for today’s networks, supporting Gigabit to the desktop for maximum performance. Deploying the GS980M as an AMF edge node when an AMF Master switch is available in the network, helps reduce network running costs by automating and simplifying many day-to-day administration tasks. 48 Gigabit ports and 4 SFP uplinks enable high-density and secure connectivity at the network edge, and the PoE+ model can supply up to 30 Watts to powered end-points.

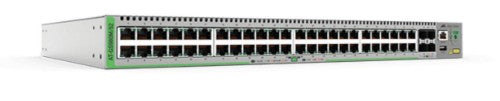

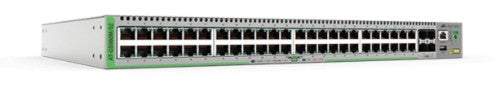

Allied Telesis AT-GS980M/52-50 Managed Gigabit Ethernet (10/100/1000) Grey
Sale price
£785.09
Regular price
£1,329.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- AlliedWare Plus™ operating system
- Autonomous Management Framework™ (AMF) edge node
- Active Fiber Monitoring
- Ethernet Protection Switched Ring (EPSR™)
- Static Routing and RIP
- DHCP snooping
- IEEE 802.1x/MAC/Web authentication support
- Loop Protection
- Eco-friendly
- Web-based Graphical User Interface (GUI)
Description
The Allied Telesis CentreCOM GS980M/52 managed switch features 48 x 10/100/1000T copper ports and 4 x 100/1000X SFP uplinks. A comprehensive feature-set, and built in security, make it ideal for high-density user and device connectivity at the network edge.Overview
Allied Telesis GS980M Series switches provide an excellent access solution for today’s networks, supporting Gigabit to the desktop for maximum performance. Deploying the GS980M as an AMF edge node when an AMF Master switch is available in the network, helps reduce network running costs by automating and simplifying many day-to-day administration tasks. 48 Gigabit ports and 4 SFP uplinks enable high-density and secure connectivity at the network edge, and the PoE+ model can supply up to 30 Watts to powered end-points.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | SNMP MIB |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Switching optical modules type | 100 Gigabit Ethernet |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Fiber optic connector | SFP |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 5.5 µs |
| Latency (1 Gbps) | 2.6 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 77.4 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Switching optical modules type | 100 Gigabit Ethernet |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Noise level | 39 dB |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Harmonized System (HS) code | 8517.62.0050 |
| Technical details | |
| Product colour | Grey |
| Noise level | 39 dB |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS |
| DHCP features | DHCP client, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP |
| Routing protocols | RIP, RIP-2 |
| Certificates | |
| Electromagnetic compatibility | EN55024 |
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Wall mountable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55024 |
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, UL-EU RoHS |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 47 W |
| Input current | 1.0 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 160 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
| Packaging data | |
| Package width | 575 mm |
| Package depth | 445 mm |
| Package height | 150 mm |
| Package weight | 6.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 8517.62.0050 |
