8 x 10/100/1000T unmanaged PoE+ switch with internal PSU, 1 Fixed AC power supply EU Power Cord, Configurable with DIP Switch

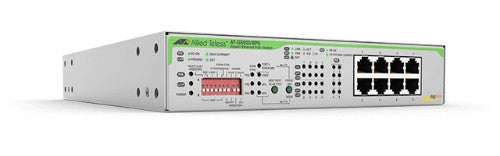

Allied Telesis AT-GS920/8PS-50 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
£202.05
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 36Gbps switch fabric and 26.7Mpps forwarding packet rate
- 16K MAC addresses
- 4K VLANs
- 9KB jumbo frame size
- 8 QoS priority queues
- 511 (Layer 2), 256 (Layer 3) Multicast groups
- IEEE 802.3at PoE+ sourcing (30W)
- Alarm input and output ports
- 240W PoE+ power budget
Description
Gigabit Ethernet DIP Smart Switches The Allied Telesis GS920 Series offers DIP Smart Gigabit switching solutions for the desktop and small networks. Front-panel DIP switches provide easy configuration of commonly-used features, without the need for a PC. DIP switches GS920 series switches provide port configuration for Speed/Duplex, Loop Detection and Flooding mode. The ability to set up the DIP switch without a PC saves money and time. High performance The GS920 Series delivers ultra-fast speed and high performance for today’s high-bandwidth applications, such as video, graphics and industrial design, using Gigabit Ethernet. Quality and reliability Allied Telesis is a world leader in unmanaged Ethernet switches, and ships more than 250,000 unmanaged switches every year. Allied Telesis offers both proven reliability and industry-leading quality. Speed/duplex configuration The GS920 Series allows speed and duplex to be set on a per-port basis. This supports older devices where auto-negotiation is not supported, as well as embedded devices which may support a fixed speed/duplex only. Loop detection The Loop Detection feature discovers network loops, and shuts down affected ports. After the loop is resolved, affected ports are automatically returned to active use. Flooding mode Flooding mode allows the easy capture of data streams for troubleshooting and analysis, as they are sent to all ports. Power over Ethernet (PoE) The GS920/8PS supports PoE+ (IEEE 802.3at) and delivers up to 30W per port. Private VLANs Private VLANs isolate ports so that they can only communicate with the uplink port, and other ports in the same VLAN group. The GS920/8PS supports 3 different port groupings for flexible private VLAN deployment. DIP SWITCH It is possible to easily set up the loop guard function, packet transmission function, etc. that need to be set by CLI or GUI operation, with the DIP switch.Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Performance | |
| Packet buffer memory | 0.192 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.192 MB |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | EAP |
| Memory | |
| Packet buffer memory | 0.192 MB |
| Design | |
| Wall mountable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.7 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 7.5 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 62 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 254 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
