USB, 1D/2D, 0 - 40° C, 80 x 35 x 38
1D Linear: 20% minimum reflective difference Typical 3 mil (Code 39, PCS 0.9) Up to 24 inches on 100% UPC/EAN symbols Up to 31.5 inches on 20 mil Code 39 630nm visible red LED

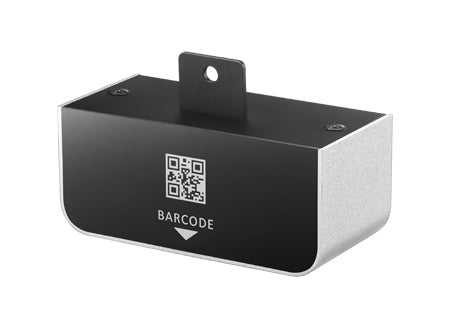

Advantech UTC-510P-B03E barcode reader Fixed bar code reader 1D/2D CMOS Black
£194.09
Taxes included.
Shipping calculated at checkout.
Details
Description
1D/2D: 752x480 CMOS 2D Barcode Decoder Chip 72MHz Red LED 625±10 nm1D Linear: 20% minimum reflective difference Typical 3 mil (Code 39, PCS 0.9) Up to 24 inches on 100% UPC/EAN symbols Up to 31.5 inches on 20 mil Code 39 630nm visible red LED
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Code 11, Code 128, Code 25 (IR 2 of 5), Code 39, Code 93, EAN-13, EAN-8, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Codablock, Code 39, Data Matrix, MaxiCode, MicroPDF417, QR Code |
| Yaw reading angle | -45 - 45° |
| Working distance | 28 cm |
| Tilt reading angle | 0 - 360° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Pitch reading angle | -45 - 45° |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| LED indicators | Yes |
| Product colour | Black |
| Design | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Power source type | AC |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 80 mm |
| Height | 38 mm |
| Technical details | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
