8x 100/1000BaseT, 4x 100/1000BaseSFP, 256 VLANs, QoS, IP30, 61x154x109 mm
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.
Gigabit Connectivity with SFP slots
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fast Deployment

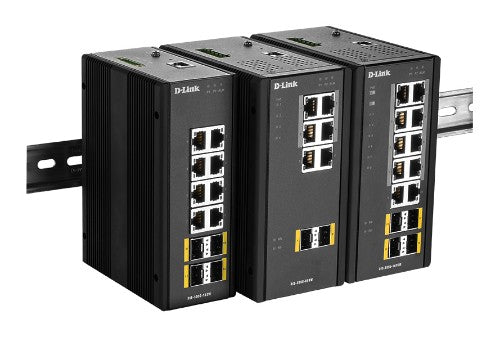

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.

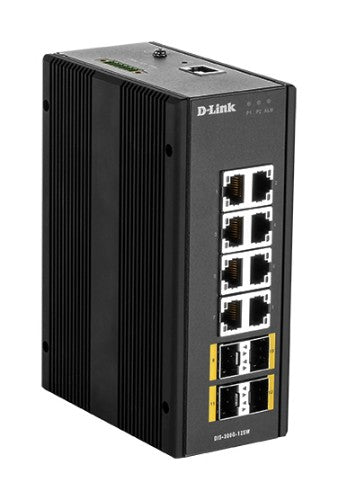

D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) & 4 x 100/1000BaseSFP
Sale price
£695.95
Regular price
£849.83
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 8 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots
- High availability
- Easy-to-control management interfaces and security
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMC
Description
Managed CustomizationFeatures user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.
Gigabit Connectivity with SFP slots
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | LC |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 1024 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Number of VLANs | 1024 |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv3, SSH |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | LAN, Status |
| Electromagnetic compatibility | FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6 |
| Rack mounting | No |
| Certification | IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE |
| Performance | |
| Firmware upgradeable | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 17 W |
| Power protection features | Over current, Reverse polarity |
| DC input voltage | 12 - 58 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power protection features | Over current, Reverse polarity |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 1024 |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Weight & dimensions | |
| Width | 61 mm |
| Depth | 154 mm |
| Height | 109 mm |
| Weight | 1.09 kg |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 242 mm |
| Package height | 118 mm |
| Package weight | 1.53 kg |
| Optical fiber | |
| Fiber optic connector | LC |
| Technical details | |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Shipping (inner) case width | 41 cm |
| Shipping (inner) case net weight | 15.3 kg |
| Shipping (inner) case length | 60 cm |
| Shipping (inner) case height | 27 cm |
| Products per shipping (inner) case | 10 pc(s) |
| Products per pallet (sea) | 280 pc(s) |
| Products per pallet (air) | 200 pc(s) |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Pallet height (sea) | 2.02 m |
| Pallet height (air) | 148.5 cm |
| Pallet gross weight (sea) | 478.6 kg |
| Pallet gross weight (air) | 346.7 kg |
| Master (outer) cases per pallet (sea) | 28 pc(s) |
| Master (outer) cases per pallet (air) | 20 pc(s) |
| Shipping (inner) case gross weight | 16.5 kg |
| Certificates | |
| Electromagnetic compatibility | FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6 |
| Certification | IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE |
| Indication | |
| LED indicators | LAN, Status |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
