24x SFP, 4x 10G SFP+, L2+
For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.
Gigabit Connectivity with SFP slots
Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from –10°C to +65°C, and can cold start from -10°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

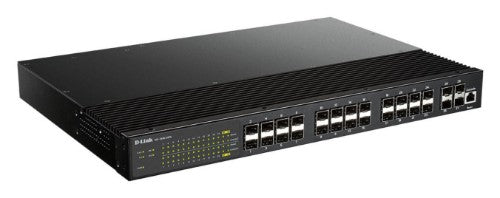

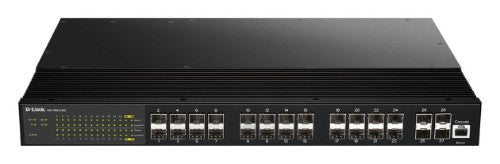

D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port 10G SFP+
Sale price
£3,150.70
Regular price
£4,054.92
Taxes included.
Shipping calculated at checkout.
Details
Description
Layer 2+ Managed CustomizationFor the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.
Gigabit Connectivity with SFP slots
Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from –10°C to +65°C, and can cold start from -10°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+ |
| Ports & interfaces | |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x |
| VLAN support | Yes |
| 10G support | Yes |
| Virtual LAN features | Multicast VLAN |
| Data transmission | |
| MAC address table | 8000 entries |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 35 W |
| Power connector | DC-in jack |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 318.5 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 570 mm |
| Package height | 110 mm |
| Package weight | 5.83 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Shipping (inner) case width | 35.7 cm |
| Shipping (inner) case net weight | 17.5 kg |
| Shipping (inner) case length | 58.2 cm |
| Shipping (inner) case height | 46.8 cm |
| Products per shipping (inner) case | 3 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Pallet height (sea) | 2.01 m |
| Pallet height (air) | 107.1 cm |
| Pallet gross weight (sea) | 467.2 kg |
| Pallet gross weight (air) | 242.1 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Shipping (inner) case gross weight | 18.8 kg |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
