4x 100/1000BaseT PoE, 1x 100/1000BaseSFP, QoS, IP30, 139x29x107 mm
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.
Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.
Fast Deployment

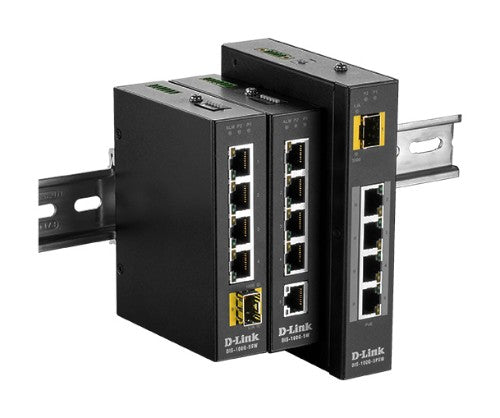

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.

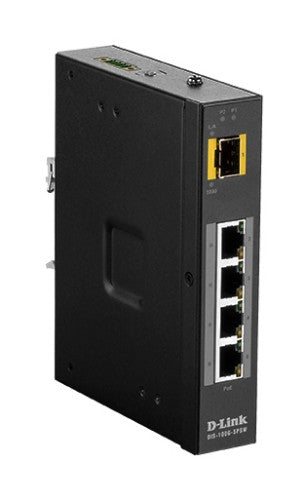

D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP
Sale price
£156.12
Regular price
£308.67
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
- 120 W PoE Budget
- Unmanaged plug-and-play simplicity
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMC
Description
Unmanaged Plug and Play with SFP and PoEPlug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.
Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Switch type | Unmanaged |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | LC |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | LAN, PoE, Power |
| Electromagnetic compatibility | FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3) |
| Rack mounting | No |
| Certification | IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE |
| Power | |
| Power consumption (max) | 120.2 W |
| Power protection features | Over current, Reverse polarity |
| DC input voltage | 12 - 58 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) voltage range | 54 - 58 V |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Power protection features | Over current, Reverse polarity |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 410.12 BTU/h |
| Weight & dimensions | |
| Width | 139 mm |
| Depth | 29 mm |
| Height | 107 mm |
| Weight | 375 g |
| Packaging data | |
| Package width | 181 mm |
| Package depth | 210 mm |
| Package height | 75 mm |
| Package weight | 700 g |
| Optical fiber | |
| Fiber optic connector | LC |
| Performance | |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Shipping (inner) case width | 38 cm |
| Shipping (inner) case net weight | 7 kg |
| Shipping (inner) case length | 39 cm |
| Shipping (inner) case height | 24 cm |
| Products per shipping (inner) case | 10 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Products per pallet (air) | 300 pc(s) |
| Pallet gross width | 110 cm |
| Pallet gross length | 120 cm |
| Pallet height (sea) | 2.06 m |
| Pallet height (air) | 133.5 cm |
| Pallet gross weight (sea) | 391.9 kg |
| Pallet gross weight (air) | 251.3 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Shipping (inner) case gross weight | 7.81 kg |
| Certificates | |
| Electromagnetic compatibility | FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3) |
| Certification | IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE |
| Indication | |
| LED indicators | LAN, PoE, Power |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
