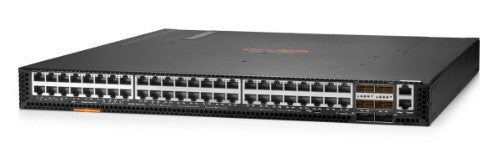

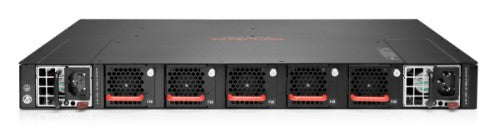

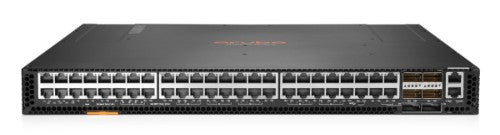

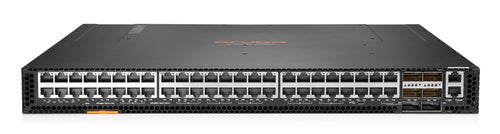

Aruba Networking CX 8320 48p 1G/10GBASE-T 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle
Fully programmable with HPE Aruba Networking CX Switch Operating System (AOS-CX), it brings automation and visibility and helps troubleshoot via simple scripting.
HPE Aruba Networking Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs.
Offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for always-on networking.
Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.
The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.
High availability with HPE Aruba Networking Virtual Switching Extension (VSX) is designed to deliver continuous availability, virtualization and simplicity requirements unique to the core of the network. Redundant and hot-swappable power supplies and fans provide additional resiliency.
This compact 1U switch delivers line rate 10GbE and 40GbE connectivity with very low latency for support of full Internet routes. Optimize for your deployment with a model that provides 32 ports of 40GbE, and models with 48 ports of 10GbE (SFP/SFP+ or 10GBASE-T) with 6 ports of 40GbE.
What is new supporting point:
High-performance campus core and aggregation switch with 2.5 Tbps switching capacity.
HPE Aruba Networking CX Switch Operating System (AOS-CX) automates using REST APIs and Python scripts.
Monitor and troubleshoot with HPE Aruba Networking Network Analytics Engine (NAE).
High availability, virtualization and simplicity with HPE Aruba Networking Virtual Switching Extension (VSX).
Compact 1U switches with 10 GbE (SFP/SFP+ or 10 GBASE-T) and 40 GbE connectivity.
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.
HPE Aruba Networking CX 8320 48p 1G/10GBASE-T 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle
Sale price
£28,004.30
Regular price
£38,923.80
Taxes included.
Shipping calculated at checkout.
Details
Reasons To Buy
Game-changing Business Agility
The HPE Aruba Networking CX 8320 Switch Series is a campus core and aggregation switch solution with an innovative and powerful approach to dealing with the new applications, security and scalability demands of the mobile, cloud and IoT era.Fully programmable with HPE Aruba Networking CX Switch Operating System (AOS-CX), it brings automation and visibility and helps troubleshoot via simple scripting.
HPE Aruba Networking Network Analytics Engine (NAE) provides the ability to monitor and troubleshoot the network, system, application and security related issues easily, through simple python agents and REST APIs.
Offers high-speed fully distributed architecture with 2.5 Tbps switching capacity for always-on networking.
Provides robust security and QoS with advanced Layer 2 and Layer 3 features including support for BGP, OSPF, and VRF.
Modern Software System Simplifies and Automates
The CX 8320 is based on HPE Aruba Networking CX Switch Operating System (AOS-CX), a modern software system for the core that automates and simplifies many critical and complex network tasks.The built-in time series database enables customers and developers to develop software modules for historical troubleshooting, as well as analysis of historical trends, to predict and avoid future problems due to scale, security and performance bottlenecks.
It includes stability, independent monitoring and restart of individual software modules, and enhanced software process serviceability functions. And it allows individual software modules to be upgraded for higher availability.
High Performance and High Availability
The HPE Aruba Networking CX 8320 Switch Series includes a high-speed, fully distributed architecture and provides up to 2.5 Tbps switching capacity to meet the demands and bandwidth-intensive applications today and in the future.High availability with HPE Aruba Networking Virtual Switching Extension (VSX) is designed to deliver continuous availability, virtualization and simplicity requirements unique to the core of the network. Redundant and hot-swappable power supplies and fans provide additional resiliency.
This compact 1U switch delivers line rate 10GbE and 40GbE connectivity with very low latency for support of full Internet routes. Optimize for your deployment with a model that provides 32 ports of 40GbE, and models with 48 ports of 10GbE (SFP/SFP+ or 10GBASE-T) with 6 ports of 40GbE.
Description
The HPE Aruba Networking CX 8320 Switch Series provides industry‑leading line rate 1/10GbE (SFP/SFP+ and 10GBASE‑T) and 40GbE connectivity in a compact 1U form factor. It provides up to 2.5 Tbps of switching capacity with redundant power and fans combined with HPE Aruba Networking Virtual Switching Extension (VSX) for a high availability solution ideal for enterprise campus and data center deployments. The CX 8320 also serves as a top of rack (ToR) switch for data centers needing 10GbE connectivity to servers and 40GbE to the spine. The CX 8320 is based on HPE Aruba Networking CX Switch Operating System (AOS-CX), a modern, database‑driven operating system that automates and simplifies many critical and complex network tasks. A built‑in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks.What is new supporting point:
High-performance campus core and aggregation switch with 2.5 Tbps switching capacity.
HPE Aruba Networking CX Switch Operating System (AOS-CX) automates using REST APIs and Python scripts.
Monitor and troubleshoot with HPE Aruba Networking Network Analytics Engine (NAE).
High availability, virtualization and simplicity with HPE Aruba Networking Virtual Switching Extension (VSX).
Compact 1U switches with 10 GbE (SFP/SFP+ or 10 GBASE-T) and 40 GbE connectivity.
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF and IPv6.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| QSFP+ module slots quantity | 6 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10GBASE-T |
| Network | |
| Copper ethernet cabling technology | 10GBASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| 10G support | Yes |
| MLD entries | 4094 |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Data transmission | |
| Packet buffer memory | 16 MB |
| MAC address table | 98304 entries |
| Switching capacity | 2500 Gbit/s |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 40 Gbit/s |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| MLD entries | 4094 |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Protocols | |
| Routing protocols | BGP, OSPF |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Number of fans | 5 fan(s) |
| Performance | |
| Processor frequency | 2000 MHz |
| Noise level | 61.1 dB |
| Mean time between failures (MTBF) | 275339 h |
| Internal memory | 16000 MB |
| Flash memory | 8000 MB |
| Built-in processor | Yes |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 348 W |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 348 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 473 mm |
| Height | 443 mm |
| Weight | 9.5 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 2000 MHz |
| Noise level | 61.1 dB |
| Mean time between failures (MTBF) | 275339 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 16 MB |
| Internal memory | 16000 MB |
| Flash memory | 8000 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
