L2+ managed switch, 8 x 10/100/1000Mbps POE+ ports, 2 x SFP uplink slots, 1 Fixed AC power supply

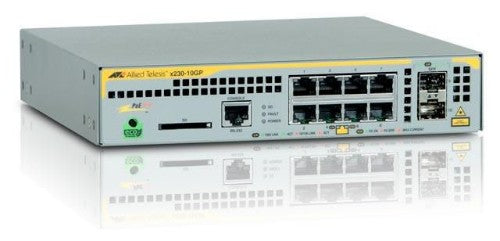

Allied Telesis AT-x230-10GP-50 Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Sale price
£677.47
Regular price
£861.00
Taxes included.
Shipping calculated at checkout.
Details
Description
The Allied Telesis x230-10GP features 8 x 10/100/1000T PoE+ ports with 2 SFP Gigabit uplink ports. The compact design provides flexible deployment options, and Power over Ethernet Plus (PoE+) provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and Pan, Tilt, and Zoom digital security cameras.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 2048 |
| Data transmission | |
| Number of VLANs | 2048 |
| Throughput | 14.9 Mpps |
| Packet buffer memory | 1.5 MB |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Flash memory | 64 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Power consumption (typical) | 16 W |
| Technical details | |
| Product colour | Grey |
| Rack mounting | No |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 2048 |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Security | |
| SSH/SSL support | Yes |
| DHCP features | DHCPv6 client, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Certification | UL, cUL, UL-EU |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Flash memory | 64 MB |
| Design | |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Product colour | Grey |
| LED indicators | Yes |
| Certification | UL, cUL, UL-EU |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 126 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 2.1 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
