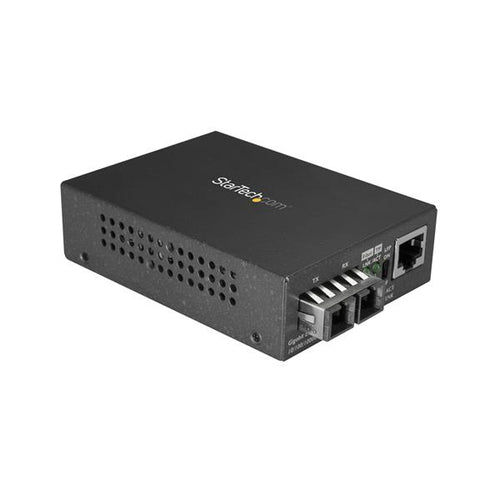

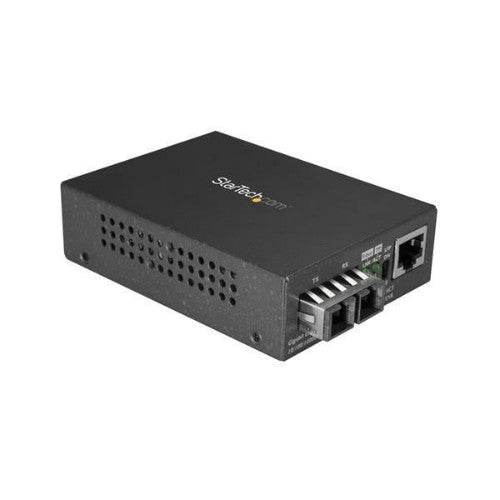

StarTech.com Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network - 10km - Gigabit Ethernet - 1310nm - w/ Auto Negotiation (MCMGBSCSM10)
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
MPN:
MCMGBSCSM10
In stock: 28
Price excluding VAT:
Exc Vat £62.63
Price including VAT:
Inc Vat £75.16
Shipping calculated at checkout.
Details
Description
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiberThis fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Network | |
|---|---|
| Fiber optic connector | SC |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Jumbo frames | 9000 |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 100Base-LX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Performance | |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power plug type | Type N |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| External power adapter | Yes |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 70 mm |
| Weight | 196 g |
| Height | 26 mm |
| Package depth | 285 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 560 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package depth | 285 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 560 g |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
