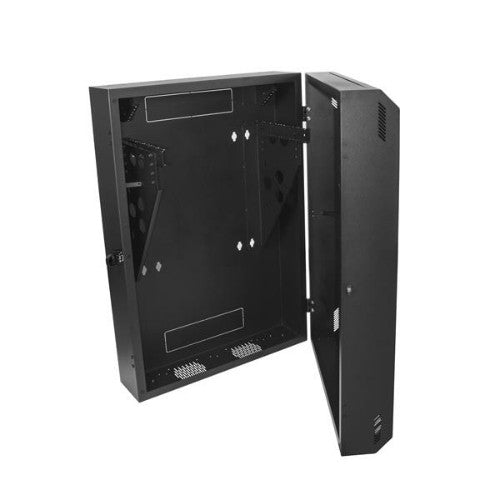

StarTech.com Server Cabinet - 6U - 30in Depth - Vertical - Wall Mount Network Rack - Network Enclosure - Wall Mount Server Rack
This 6U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation
The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK630WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Total load capacity of 200 lb. (90.7 kg)
- Save space by mounting your server vertically to the wall
- Extra 2U of space for switches and patch cables
StarTech.com 6U Vertical Server Cabinet - 30 in. depth
MPN:
RK630WALVS
In stock: 21
Price excluding VAT:
Exc Vat £231.04
Price including VAT:
Inc Vat £277.25
Shipping calculated at checkout.
Details
Key Features
- ADDED MOUNTING FEATURES: The IT server room cabinet features a 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other rack-mount equipment
- SAVES SPACE: The 6U wall mount network cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically
- STURDY DESIGN: To help keep your equipment secure, the vertical vented 6U wall mount data rack cabinet features a sturdy metal design and a lock on both the door and access panel
- HASSLE-FREE INSTALLATION: The wall mount patch panel rack cabinet comes fully assembled and includes all of the necessary hardware to install equipment; the mounting holes are spaced 16 in. apart
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall mount network cabinet is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Vertically wall-mount your server or networking equipment in this 6U network cabinetThis 6U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure
To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation
The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK630WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Total load capacity of 200 lb. (90.7 kg)
- Save space by mounting your server vertically to the wall
- Extra 2U of space for switches and patch cables
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 370 mm |
| Package width | 720 mm |
| Package height | 1000 mm |
| Package weight | 35 kg |
| Inner width | 64.1 cm |
| Inner depth | 28.8 cm |
| Mounting depth (max) | 76 cm |
| Width | 645 mm |
| Depth | 294 mm |
| Height | 941 mm |
| Weight | 33 kg |
| Maximum weight capacity | 90 kg |

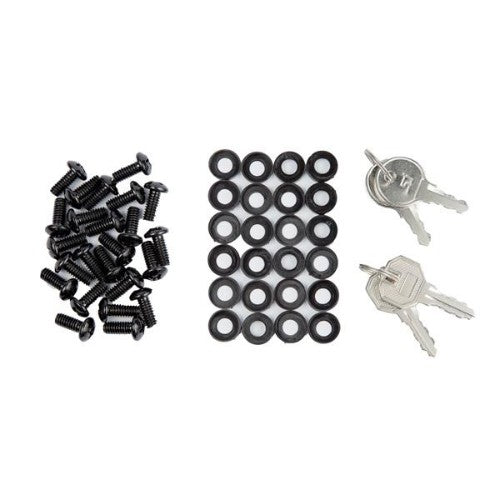

| Packaging content | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 24 |
| Screws included | Yes |
| Number of screws | 24 |
| Number of washers included | 24 |
| Features | |
| Frame type | Closed |
| Product design | 2-post |
| Rack capacity | 6U |
| Castor wheels | No |
| Adjustable mounting rails | Yes |
| Removable back door | No |
| Removable front door | No |
| Removable side panels | No |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Back door key lock | No |
| Front door key lock | Yes |
| Side panel key lock | No |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Packaging data | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 24 |
| Package depth | 370 mm |
| Package width | 720 mm |
| Package height | 1000 mm |
| Package weight | 35 kg |
| Screws included | Yes |
| Number of screws | 24 |
| Number of washers included | 24 |
| Technical details | |
| Package width | 720 mm |
| Package height | 1000 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Rack capacity | 6U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, REACH |
| Material | |
| Material | Steel |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
