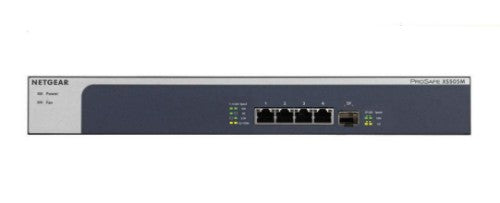

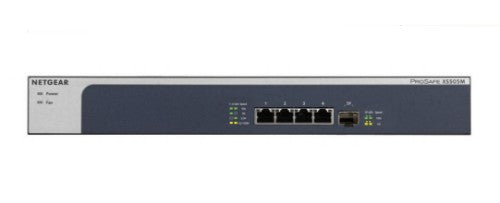

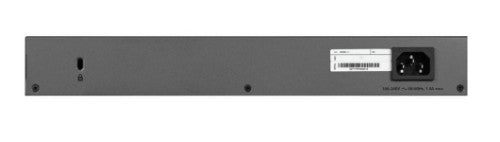

NETGEAR XS505M, Unmanaged, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting
NETGEAR XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver
Sale price
£280.38
Regular price
£399.85
Taxes included.
Shipping calculated at checkout.
Details
Description
NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mountingSpecifications
| Performance | |
|---|---|
| Packet buffer memory | 128 MB |
| Mean time between failures (MTBF) | 1093237 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 22.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 12.25 W |
| Input current | 1.5 A |
| Power source | AC |
| Technical details | |
| Product colour | Grey, Silver |
| Mean time between failures (MTBF) | 1093237 h |
| Rack mounting | Yes |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 128 MB |
| MAC address table | 2000 entries |
| Switching capacity | 100 Gbit/s |
| Jumbo frames support | Yes |
| Certificates | |
| Safety | CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI |
| Certification | 47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438 |
| Memory | |
| Packet buffer memory | 128 MB |
| Design | |
| Safety | CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI |
| Product colour | Grey, Silver |
| LED indicators | Yes |
| Certification | 47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438 |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 85.3 BTU/h |
| Weight & dimensions | |
| Width | 328 mm |
| Depth | 169 mm |
| Height | 43.2 mm |
| Weight | 1.38 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
