16 x 10/100T POE+ ports and 2 x combo ports (100/1000X SFP or 10/100/1000T Copper), Fixed AC power supply, EU Power Cord
The FS980M/18PS features 16 x 10/100TX PoE+ ports and 2 combo (10/100/1000T or 100/1000X SFP) uplink ports.
The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.

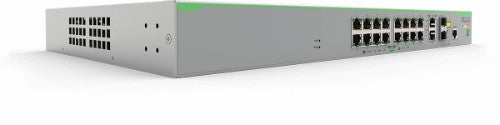

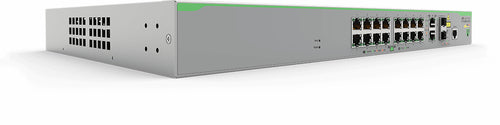

Allied Telesis AT-FS980M/18PS-50 Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
£689.55
Taxes included.
Shipping calculated at checkout.
Details
Description
Fast Ethernet Managed Access SwitchThe FS980M/18PS features 16 x 10/100TX PoE+ ports and 2 combo (10/100/1000T or 100/1000X SFP) uplink ports.
The CentreCOM FS980M Series are cost-effective Fast Etherent switches for deployment at the network edge. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs. Power over Ethernet delivers the full 30 watts of PoE+ to support video surveillance and wireless access applications.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Throughput | 5.36 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 7.2 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Safety | FCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1 |
| Product colour | Grey |
| Rack mounting | No |
| Certification | CE, cULus, TUV, RoHS |
| Performance | |
| Noise level | 33 dB |
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 24 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 16 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1100 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 257 mm |
| Height | 43.2 mm |
| Weight | 3.6 kg |
| Packaging data | |
| Package weight | 5.7 kg |
| Technical details | |
| Product colour | Grey |
| Noise level | 33 dB |
| Rack mounting | No |
| Certificates | |
| Safety | FCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1 |
| Certification | CE, cULus, TUV, RoHS |
| Memory | |
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
