16 x 10/100/1000T POE+ ports and 2 x 100/1000X SFP, 247W POE capacity, Fixed one AC power supply, EU Power Cord
The CentreCOM® GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
Overview
- Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF)
- Flexible deployment with 10, 18 and 28 port models
- High-speed gigabit network access for power users
- Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones
- Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)
Key Features
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments

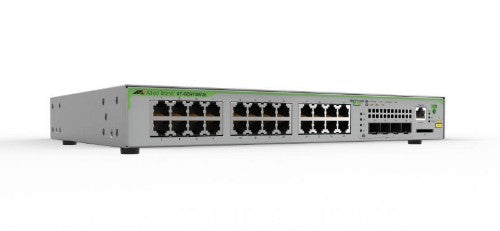

Allied Telesis AT-GS970M/18PS-50 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Sale price
£522.67
Regular price
£640.00
Taxes included.
Shipping calculated at checkout.
Details
Description
Managed Gigabit Edge SwitchesThe CentreCOM® GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
Overview
- Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF)
- Flexible deployment with 10, 18 and 28 port models
- High-speed gigabit network access for power users
- Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones
- Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)
Key Features
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 2048 |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| Data transmission | |
| Number of VLANs | 2048 |
| Jumbo frames | 10000 |
| Throughput | 26.8 Mpps |
| Latency (10-100 Mbps) | 7.9 µs |
| Latency (1 Gbps) | 3.4 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Buffer size | 524 KB |
| Noise level | 34 dB |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 21 W |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Noise level | 34 dB |
| Rack mounting | Yes |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Number of VLANs | 2048 |
| Link aggregation | Yes |
| 10G support | No |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1 |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Design | |
| Safety | FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1 |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 72 BTU/h |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 3 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4.35 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
