8 x 10/100/1000T ports and 2 x 100/1000X SFP, Fixed one AC power supply, EU Power Cord

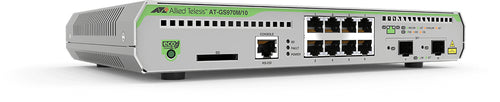

Allied Telesis AT-GS970M/10-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Grey
£284.29
Taxes included.
Shipping calculated at checkout.
Details
Description
The Allied Telesis CentreCOM® GS970M/10PS Layer 3 managed switch features eight 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 10000 |
| Throughput | 14.9 Mpps |
| Latency (10-100 Mbps) | 7.8 µs |
| Latency (1 Gbps) | 3.4 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992A |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 16 W |
| Technical details | |
| Form factor | 1U |
| Product colour | Black, Grey |
| Rack mounting | Yes |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1 |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Design | |
| Safety | FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1 |
| Form factor | 1U |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 55 BTU/h |
| Weight & dimensions | |
| Width | 265 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.5 kg |
| Packaging data | |
| Included power plug types | EU |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 2.85 kg |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Included power plug types | EU |
| Cables included | AC |
