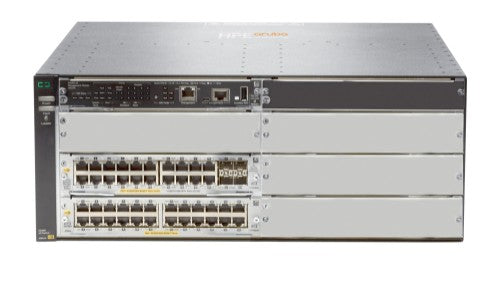

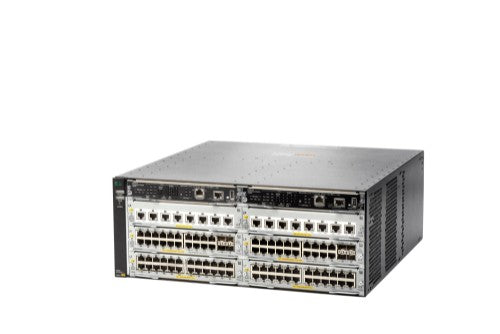

Aruba Networking 5406R 44GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch
Based on the 6th generation ProVision ASIC, the 5400R zI2 Series has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency and built-in programmable and easy to use REST API interface; provides configuration automation for Mobile-first campus networks.
Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate 40 GbE uplinks, up to 96 line rate 10 GbE ports (SFP+ and 10 GBASE-T), 1 GbE and up to 288 ports of PoE+ with internal power supplies.
Optimized for the digital workplace with unified management and security tools such as ClearPass Policy Manager, Airwave and Central. Provides optimal configuration automatically when connected to access points for PoE priority, VLAN configuration, and rogue AP containment.
License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, VRRP, OSPF, Tunnel Node and robust QoS.
Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
Redundant management and power systems enhance system availability and continuity of operations. Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
Virtual Switching Framework (VSF) virtualizes up to two physical switches into one logical device for simpler, flatter, more agile networks. Fast Software Upgrade minimizes downtime during upgrade on 5400R zI2 Series VSF stack.
Flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACsec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access. Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
Tunnel Node to transport network traffic to networking controller with authentication and network policies applied and enforced at the controller.
Supports HPE Aruba Networking AirWave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
HPE Aruba Networking Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
Supports both cloud-based Central and On-Premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.
What is new supporting point:
Scalable line rate 40 GbE for wireless traffic aggregation.
HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
Powerful Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
Fast software upgrade for 5400R zI2 series VSF stack minimizes downtime.
Ready for the software defined network with REST APIs and OpenFlow support.
HPE Aruba Networking 5406R 44GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch
Sale price
£7,518.42
Regular price
£10,532.00
Taxes included.
Shipping calculated at checkout.
Details
Reasons To Buy
Power and Innovation For Your Digital Workplace
The 5400R zl2 Series is an industry-leading mobile campus access solution with HPE Smart Rate multi-gigabit ports for high-speed connectivity for the latest 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to mobile campus networks.Based on the 6th generation ProVision ASIC, the 5400R zI2 Series has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency and built-in programmable and easy to use REST API interface; provides configuration automation for Mobile-first campus networks.
Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate 40 GbE uplinks, up to 96 line rate 10 GbE ports (SFP+ and 10 GBASE-T), 1 GbE and up to 288 ports of PoE+ with internal power supplies.
Optimized for the digital workplace with unified management and security tools such as ClearPass Policy Manager, Airwave and Central. Provides optimal configuration automatically when connected to access points for PoE priority, VLAN configuration, and rogue AP containment.
License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, VRRP, OSPF, Tunnel Node and robust QoS.
Resiliency and High Availability at the Edge
The 5400R zI2 Series using the sixth generation ProVision ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
Redundant management and power systems enhance system availability and continuity of operations. Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
Virtual Switching Framework (VSF) virtualizes up to two physical switches into one logical device for simpler, flatter, more agile networks. Fast Software Upgrade minimizes downtime during upgrade on 5400R zI2 Series VSF stack.
Robust Security and Dynamic Quality of Service (QoS)
The HPE Aruba Networking 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.Flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACsec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access. Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
Tunnel Node to transport network traffic to networking controller with authentication and network policies applied and enforced at the controller.
Simplify with Integrated Wired/Wireless Management
The 5400R zl2 Series supports HPE Aruba Networking ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.Supports HPE Aruba Networking AirWave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
HPE Aruba Networking Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
Supports both cloud-based Central and On-Premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.
Description
The HPE Aruba Networking 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Dynamic Segmentation, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40 GbE, robust QoS and security and requires no software licensing. The 5400R zl2 Series is easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and cloud-based HPE Aruba Networking Central.What is new supporting point:
Scalable line rate 40 GbE for wireless traffic aggregation.
HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
Powerful Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
Fast software upgrade for 5400R zI2 series VSF stack minimizes downtime.
Ready for the software defined network with REST APIs and OpenFlow support.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Compatible memory cards | SD |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Routing entries | 10000 |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 571.4 Mpps |
| Latency (1 Gbps) | 2.8 µs |
| Latency (10 Gbps) | 1.8 µs |
| MAC address table | 64000 entries |
| Switching capacity | 960 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Design | |
| Form factor | 4U |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1200 MHz |
| Noise level | 44 dB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Processor model | QorIQ P2020 |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | No |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 2450 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 450.9 mm |
| Height | 175.3 mm |
| Weight | 12.8 kg |
| Technical details | |
| Form factor | 4U |
| Product colour | Grey |
| Stackable | Yes |
| Processor frequency | 1200 MHz |
| Noise level | 44 dB |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
