Networking Comware Switch 48XGT 6QSFP28 5940
The HPE FlexFabric 5940 Switch Series is also available with a 2-slot modular version delivering 2 40GbE ports and a 4-slot modular version with 4 40GbE ports.
The HPE 5940 Switch Series includes HPE FlexFabric Network Analytics which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.
It supports up to 1904 MPPS throughput for data-intensive environments.
Low latency, under 1µs for 40GbE, gives your network increased throughput.
VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.
The In Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.
No hidden costs with simple one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.
What is new supporting point:
Pre-configured switch bundles for deployment in the campus aggregation and core.
VXLAN Layer 2 and Layer 3 gateway support.
HPE FlexFabric Network Analytics solution provides network visibility and all information to run the network at its optimal performance.
Comware 7 advanced modular operating system designed for high availability.
EVPN, OpenFlow and SDN automate manual tasks and speed service delivery.
IRF supports of up to nine switches simplifies management by up to 88%.

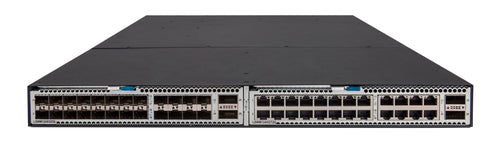

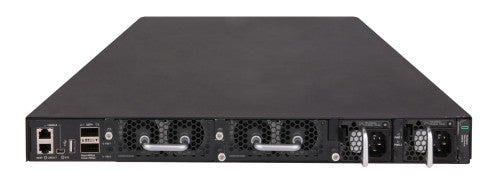

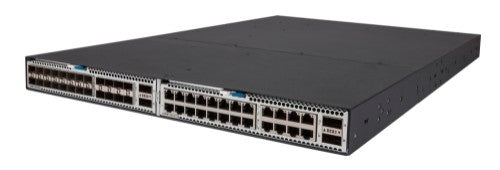

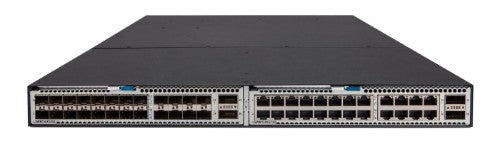

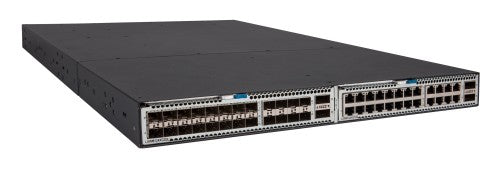

HPE Networking Comware Switch 48XGT 6QSFP28 5940
Sale price
£20,903.94
Regular price
£29,539.00
Taxes included.
Shipping calculated at checkout.
Details
Reasons To Buy
High-Density, Advanced, Data Center Switches with HPE FlexFabric Network Analytics
The HPE FlexFabric 5940 Switch Series enables customers to scale their server-edge 10/40/100GbE ToR deployments with high-density 48 x 10GbE (SFP or BASE-T) with 6 x 40GbE ports, 48 x 10GbE (SFP or BASE-T) with 6 x 100GbE ports, and 32 x 40GbE ports, delivered in a 1RU design.The HPE FlexFabric 5940 Switch Series is also available with a 2-slot modular version delivering 2 40GbE ports and a 4-slot modular version with 4 40GbE ports.
The HPE 5940 Switch Series includes HPE FlexFabric Network Analytics which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.
High-Performance Data Center Switching
The HPE FlexFabric 5940 Switch Series delivers up to 2.56 Tbps switching capacity for the most demanding data center applications.It supports up to 1904 MPPS throughput for data-intensive environments.
Low latency, under 1µs for 40GbE, gives your network increased throughput.
VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.
Business Agility and Resilience with Comware 7
The HPE FlexFabric 5940 Switch Series delivers Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) <50 msec convergence time enabling faster application response time.The In Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
HPE FlexFabric 5940 Switch Series simplifies switch management by up to 88% with 9-unit Intelligent Resilient Fabric (IRF).No hidden costs with simple one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.
Description
The HPE FlexFabric 5940 Switch Series is a family of high-performance and low-latency 10GbE and 40GbE top-of-rack (ToR) data center switches. The 5940 Switch includes 100G uplink technology which is part of the HPE FlexFabric data center solution and is a cornerstone of the FlexNetwork architecture. The 5940 Switch is suited for deployment at the aggregation or server access layer of large enterprise data centers or at the core layer of medium-sized enterprises. It is optimized for high-performance server connectivity, convergence of Ethernet and storage traffic, and virtual environments.What is new supporting point:
Pre-configured switch bundles for deployment in the campus aggregation and core.
VXLAN Layer 2 and Layer 3 gateway support.
HPE FlexFabric Network Analytics solution provides network visibility and all information to run the network at its optimal performance.
Comware 7 advanced modular operating system designed for high availability.
EVPN, OpenFlow and SDN automate manual tasks and speed service delivery.
IRF supports of up to nine switches simplifies management by up to 88%.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 0 |
| QSFP+ module slots quantity | 6 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45/Mini-USB |
| Network | |
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x |
| 10G support | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Fiber optic connector | QSFP28 |
| Data transmission | |
| Throughput | 1607 Mpps |
| Latency (10 Gbps) | 1 µs |
| Packet buffer memory | 16 MB |
| MAC address table | 288000 entries |
| Switching capacity | 2160 Gbit/s |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP, Telnet, FTP |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 9 |
| Internal memory | 4096 MB |
| Flash memory | 1024 MB |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 320 W |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 320 W |
| Input voltage | -40 - -75 V |
| DC input voltage | 40 - 60 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Warranty period | 1 year(s) |
| Input voltage | -40 - -75 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 887 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 660 mm |
| Height | 43.6 mm |
| Weight | 13 kg |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Technical details | |
| Physical stacking (units) | 9 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Warranty period | 1 year(s) |
| Memory | |
| Packet buffer memory | 16 MB |
| Internal memory | 4096 MB |
| Flash memory | 1024 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
