15" TFT LCD (LED), 1024 x 768, 4:3, AccuTouch, 35 ms, 1500:1, VGA, HDMI 1.3, DP 1.1a, 100-240 VAC, 50/60 Hz, 336.4 mm x 264.4 mm x 41.9 mm
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. The 1598L also offers mounting features that enable the power converter to be mounted on the back of the monitor for ease of integration.
Touch ready.
The 1598L is available with Elo's industry-leading AccuTouch® five-wire resistive with a standard bezel and single-touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

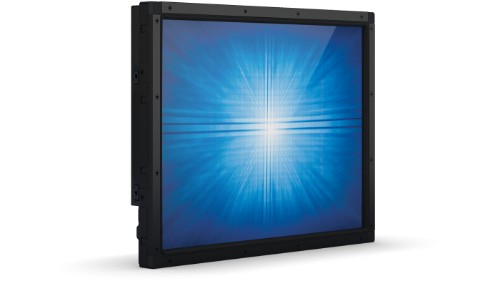

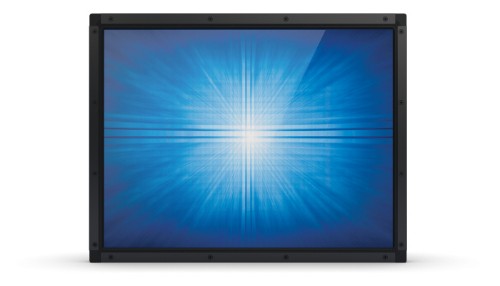

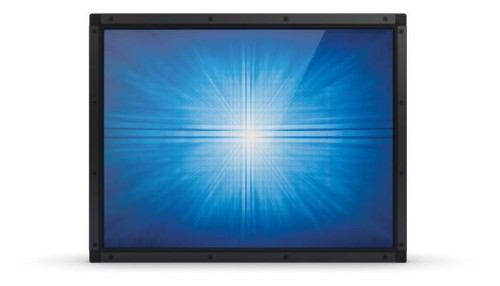

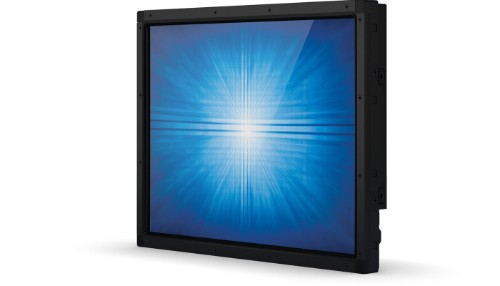

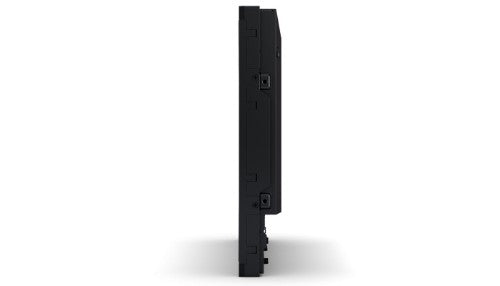

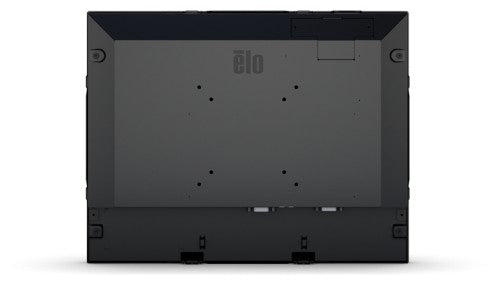

Elo Touch Solutions 1598L 38.1 cm (15") LCD/TFT 400 cd/m² Black Touchscreen
£447.53
Taxes included.
Shipping calculated at checkout.
Details
Description
The Elo 1598L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1598L includes a 500 nit high bright display and extended temperature range to 50 C (122° F) making it ideal for factory automation and other instrumentation control applications. With an optional 24 VDC converter kit included with the unit, manufacturers can leverage a common 24V power supply in their design with a single AC connection. This compact touch display is designed for touch with proven Elo expertise and provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. The 1598L also offers mounting features that enable the power converter to be mounted on the back of the monitor for ease of integration.
Touch ready.
The 1598L is available with Elo's industry-leading AccuTouch® five-wire resistive with a standard bezel and single-touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.2 million colours |
| Touchscreen | Yes |
| Display technology | LCD/TFT |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 400 cd/m² |
| Response time | 35 ms |
| Contrast ratio (typical) | 1500:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA) |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Resistive |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 100 mm |
| Certification | RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 14.1 W |
| Power consumption (standby) | 1.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Packaging data | |
| Package width | 434 mm |
| Package depth | 175 mm |
| Package height | 375 mm |
| Package weight | 4.7 kg |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | HDMI, USB, VGA |
| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | HDMI, USB, VGA |
| Operational conditions | |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | AC/DC |
| Depth (without stand) | 41.9 mm |
| Weight (without stand) | 2.9 kg |
| Height (without stand) | 264.4 mm |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | AC/DC |
| Depth (without stand) | 41.9 mm |
| Weight (without stand) | 2.9 kg |
| Height (without stand) | 264.4 mm |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD/TFT |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 60 kHz |
| Built-in microphone | No |
| Built-in camera | No |
| Quick start guide | Yes |
| Aspect ratio | 4:3 |
| Maximum refresh rate | 60 Hz |
