Managed Gigabit Ethernet Switch, 16x 10/100/1000T ports, 2x 100/1000X SFP ports, UK power cord

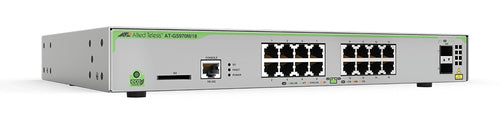

Allied Telesis AT-GS970M/18-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Sale price
£380.87
Regular price
£670.50
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- AlliedWare Plus Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments
Description
The Allied Telesis CentreCOM® GS970M/18 Layer 3 managed switch features sixteen 10/100/1000T Gigabit Ethernet ports and two 100/1000X SFP ports for secure connectivity at the network edge.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | SNMP MIB |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Compatible memory cards | SD, SDHC |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Fiber optic connector | SFP |
| Console port | RS-232 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Fast leave | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 7.9 µs |
| Latency (1 Gbps) | 3.4 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 26.8 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Noise level | 29 dB |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Telnet | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Noise level | 29 dB |
| Rack mounting | Yes |
| Telnet | Yes |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| Password protection | Yes |
| Authentication type | AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS |
| Neighbor discovery snooping | Yes |
| DHCP features | DHCP snooping, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | RIP, RIP-2 |
| Certificates | |
| Safety | EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1 |
| Certification | FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Design | |
| Wall mountable | Yes |
| Country of origin | China |
| Safety | EN60950-1 (TUV), UL 60950- 1(cULus), EN60825-1 |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Certification | FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 18 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.4 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 61 BTU/h |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
| Packaging data | |
| Included power plug types | UK |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4 kg |
| Packaging content | |
| Included power plug types | UK |
| Other features | |
| Country of origin | China |
