48 x 10/100/1000BASE-TX PoE+ ports, 2 x SFP+ ports, 2 x SFP+/Stack ports, 1 x Expansion module and dual hotswap PSU bays

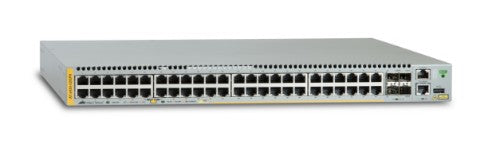

Allied Telesis AT-x930-52GPX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Sale price
£4,466.04
Regular price
£8,186.00
Taxes included.
Shipping calculated at checkout.
Details
Description
The Allied Telesis x930-52GPX features 48 Gigabit ports with 4 10 Gigabit uplinks, and dual hot-swap power supplies for a fully resilient solution. Long-distance stacking of up to 8 units supports distributed environments, and Power over Ethernet provides the full 30 watts of PoE+ on all ports supporting today’s high-power devicesSpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 2000 |
| Port mirroring | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Multicast MAC address table | 2000 entries |
| Throughput | 250 Mpps |
| Latency (1 Gbps) | 3.7 µs |
| Latency (10 Gbps) | 2.6 µs |
| MAC address table | 64000 entries |
| Switching capacity | 3.36 Gbit/s |
| Performance | |
| Stackable | Yes |
| Expansion module support | Yes |
| Noise level | 56 dB |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Expansion module support | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Noise level | 56 dB |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Security | |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast MAC address table | 2000 entries |
| Multicast support | Yes |
| Certificates | |
| Safety | UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL |
| Design | |
| Safety | UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 97 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 341 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Weight | 5.2 kg |
