10.1", 1280 x 800, 16:10, 25 ms, TFT-LCD, HDMI, DisplayPort, VGA, Black
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing

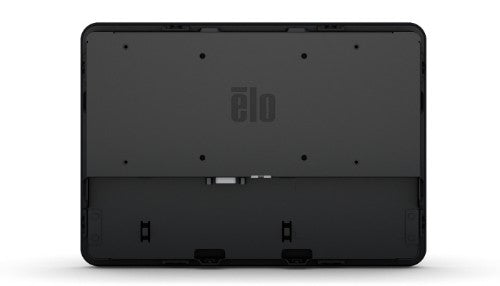

- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Display Port and VGA video interfaces

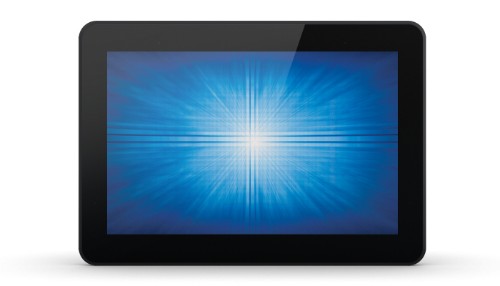

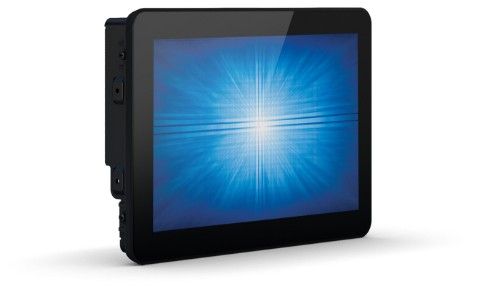

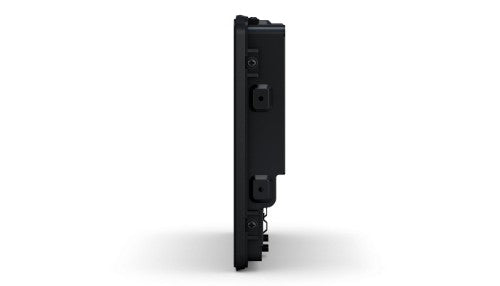

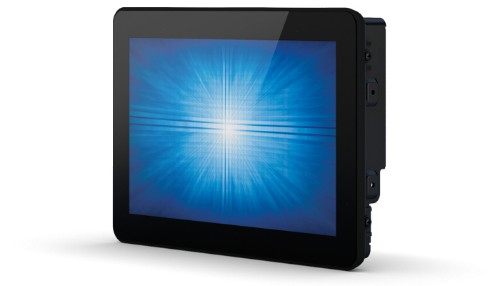

Elo Touch Solutions ET1093L 25.6 cm (10.1") LCD 350 cd/m² Black Touchscreen
£265.31
Taxes included.
Shipping calculated at checkout.
Details
Description
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Display Port and VGA video interfaces
Specifications
| Display | |
|---|---|
| Panel type | TFT |
| Display number of colours | 262144 colours |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 350 cd/m² |
| Response time | 25 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 800 |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 6.1 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Packaging data | |
| Package width | 336 mm |
| Package depth | 175 mm |
| Package height | 262 mm |
| Package weight | 2.6 kg |
| Operational conditions | |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | AC/DC |
| Panel type | TFT |
| Depth (without stand) | 36.9 mm |
| Weight (without stand) | 1.2 kg |
| Height (without stand) | 178.5 mm |
| Display viewable area (HxV) | 216.96 x 135.6 mm |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | AC/DC |
| Panel type | TFT |
| Depth (without stand) | 36.9 mm |
| Weight (without stand) | 1.2 kg |
| Height (without stand) | 178.5 mm |
| Display viewable area (HxV) | 216.96 x 135.6 mm |
| Power consumption (PowerSave) | 0.7 W |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 60 kHz |
| Backlight type | LED |
| Aspect ratio | 16:10 |
