1291L 12" (800 x 600) Open Frame Touchscreen (Rev B), TouchPro PCAP, HDMI, VGA, Display Port
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.
Touch ready.
Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology, and Elo’s latest TouchPro™ PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

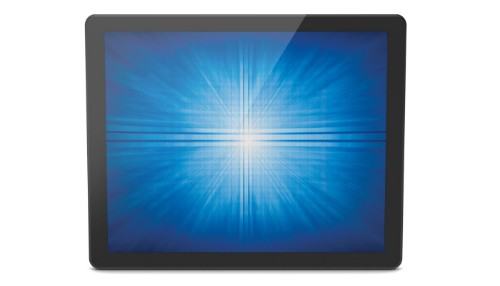

Elo Touch Solutions 1291L 30.7 cm (12.1") LCD/TFT 405 cd/m² Black Touchscreen
£440.27
Taxes included.
Shipping calculated at checkout.
Details
Description
The Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.
Touch ready.
Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology, and Elo’s latest TouchPro™ PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.2 million colours |
| Touchscreen | Yes |
| Display technology | LCD/TFT |
| Display diagonal | 30.7 cm (12.1") |
| Display resolution | 800 x 600 pixels |
| Display brightness | 405 cd/m² |
| Response time | 25 ms |
| Contrast ratio (typical) | 1500:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 38 kHz |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 12.2 W |
| Packaging data | |
| Package width | 384 mm |
| Package depth | 185 mm |
| Package height | 322 mm |
| Package weight | 4.75 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | DC |
| Weight (without stand) | 2.65 kg |
| Full HD | No |
| Display viewable area (HxV) | 246 x 184.5 mm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | DC |
| Weight (without stand) | 2.65 kg |
| Display viewable area (HxV) | 246 x 184.5 mm |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD/TFT |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 38 kHz |
| Built-in camera | No |
| Backlight type | LED |
| Aspect ratio | 4:3 |
| Maximum refresh rate | 60 Hz |
