DX517, 5x 2.5/3.5" SATA HDD/SSD, eSATA, 21.5 dB, 100-240 V, 50/60 Hz, 200 W, 157 x 248 x 233 mm, 3910 g
5-bay 3.5”/2.5” SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5” and 3.5” SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.

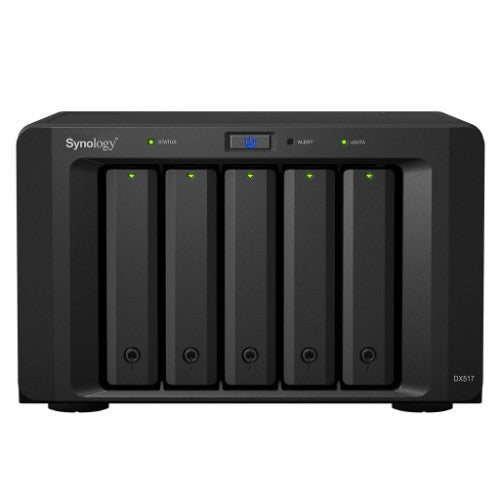

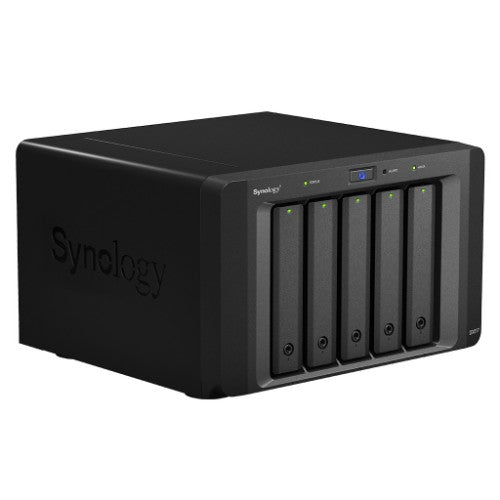

Synology DX517 disk array Desktop Black
MPN:
DX517
In stock: 51
£495.01
VAT included.
Shipping calculated at checkout.
Details
Description
Effortless capacity expansion for Synology DiskStation solutions on-the-fly.5-bay 3.5”/2.5” SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5” and 3.5” SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
Specifications
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 5 |
| Storage drives installed | No |
| Maximum supported storage capacity | 80 TB |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Ports & interfaces | |
| USB connectivity | No |
| eSATA ports quantity | 1 |
| Technical details | |
| Device class | Small & Medium Business |
| Number of fans | 2 fan(s) |
| Noise level | 21.5 dB |
| Product colour | Black |
| LED indicators | Alarm, Power, Status |
| Compatible products | Synology DS1817+, DS1517+ |
| Chassis type | Desktop |
| Certification | FCC B, CE B, BSMI B |
| Harmonized System (HS) code | 84717020 |
| Compliance certificates | RoHS |
| Design | |
| Device class | Small & Medium Business |
| Number of fans | 2 fan(s) |
| Noise level | 21.5 dB |
| Product colour | Black |
| LED indicators | Alarm, Power, Status |
| Compatible products | Synology DS1817+, DS1517+ |
| Chassis type | Desktop |
| Certification | FCC B, CE B, BSMI B |
| Performance | |
| Device class | Small & Medium Business |
| Noise level | 21.5 dB |
| Compatible products | Synology DS1817+, DS1517+ |
| Power | |
| Power supply unit (PSU) capacity | 200 W |
| Number of power supply units | 1 |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 29.9 W |
| Weight & dimensions | |
| Width | 248 mm |
| Depth | 233 mm |
| Weight | 3.91 kg |
| Height | 157 mm |
| Packaging content | |
| Cables included | AC, eSATA |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Cables included | AC, eSATA |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717020 |
