3000VA, 3000W, C20 In, 8 x C13 & 2 x C19 Out

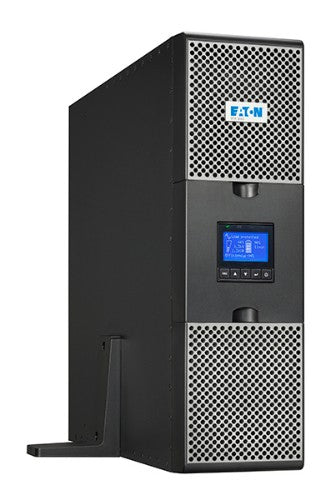

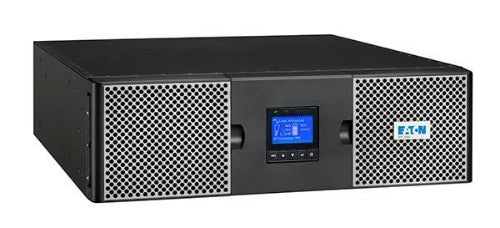

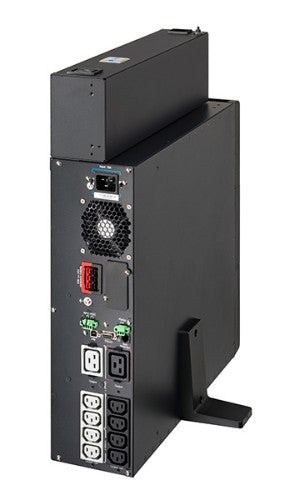

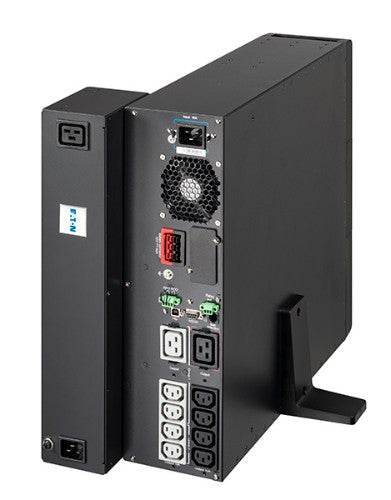

Eaton 9PX3000IRTM uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC outlet(s)
Sale price
£3,565.46
Regular price
£4,916.63
Taxes included.
Shipping calculated at checkout.
Details
Description
The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.Specifications
| Power | |
|---|---|
| Output power | 3000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 0.94% |
| Power factor | 1 |
| Output power capacity | 3 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Number of input phases | 1 |
| LED indicators | Yes |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Number of input phases | 1 |
| Output power | 3000 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 0.94% |
| Power factor | 1 |
| Noise level | 40 dB |
| Output power capacity | 3 kVA |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 9.5 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 3U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 27.4 kg |
| Width | 440 mm |
| Height | 130 mm |
| Depth | 485 mm |
| Packaging data | |
| Rack mount kit | Yes |
| Bundled software | Intelligent Power Software suite |
| Management card included | No |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |

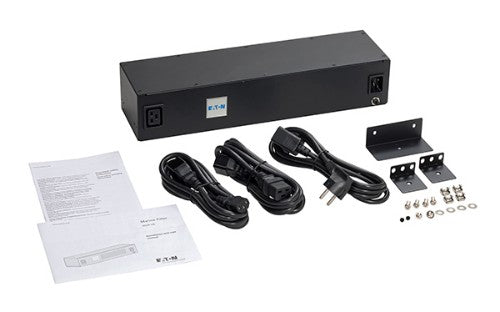

| Packaging content | |
| Rack mount kit | Yes |
| Bundled software | Intelligent Power Software suite |
