50m 4 Port USB 2.0 Cat.6 Extender
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

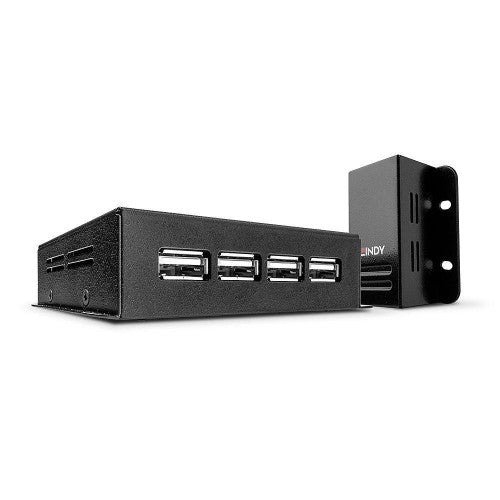

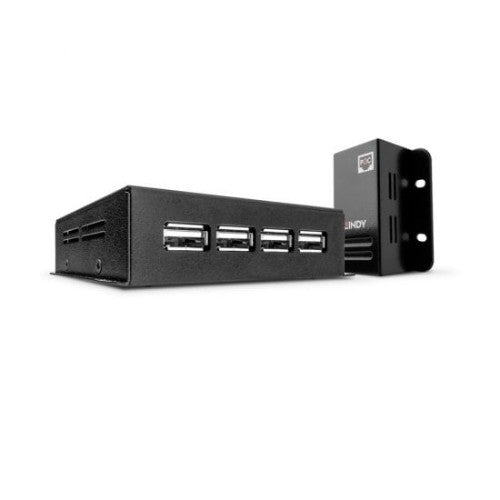

Lindy 50m 4 Port USB 2.0 Cat.6 Extender
MPN:
42681
In stock: 32
Price excluding VAT:
Exc Vat £81.96
Price including VAT:
Inc Vat £98.35
Shipping calculated at checkout.
Details
Key Features
- Extend 4 USB 2.0 ports up to 50m using low cost Cat. 5e/6 network cable (not included)
- Power over Cable requires a single power supply to be connected to the transmitter only
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug and Play installation
- 2 year warranty
Description
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Specifications
| Performance | |
|---|---|
| Chipset (transmitter) | NS1021 |
| Plug and Play | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 2 |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Connector contacts plating | Gold |
| Design | |
| Housing material | Metal |
| LED indicators | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Product colour | Black |
| Power | |
| Power over Ethernet (PoE) | Yes |
| External power adapter | Yes |
| Output voltage | 24 V |
| Output current | 0.5 A |
| Included power plug types | AU, EU, UK, US |
| Power note | 3.5/1.35mm DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Transmitter width | 6 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.3 cm |
| Receiver width | 11 cm |
| Receiver depth | 6.4 cm |
| Receiver height | 2.3 cm |
| Weight | 415 g |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-A to USB Type-B |
| Packaging data | |
| Package type | Box |
| Package volume | 600 cm³ |
| Package width | 215 mm |
| Package depth | 155 mm |
| Package height | 50 mm |
| Technical details | |
| Chipset (transmitter) | NS1021 |
| Plug and Play | Yes |
| LED indicators | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Harmonized System (HS) code | 85176990 |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
