2 x SFP, 2 x RJ-45, 10/100 Mbps, 24 V DC

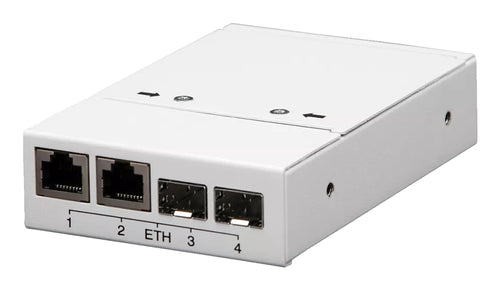

Axis 5901-261 network media converter Internal 100 Mbit/s White
MPN:
5901-261
Low stock: 1
Price excluding VAT:
Exc Vat £326.45
Price including VAT:
Inc Vat £391.74
Shipping calculated at checkout.
Details
Key Features
- 24 V DC IN; Compatible with Axis network products; Convert Ethernet to optical fiber; Support for 10/100 Mbps; Two SFP slots and two RJ45 ports
Description
AXIS T8606 Media Converter Switch 24 V DC allows connection to the network using standard Ethernet or fiber optic cables that help lower the cost of installing the cameras over long distances. Perfect for city surveillance, airports and other long distance installations, AXIS T8606 is a DIN-mounted device that can convert an Ethernet signal to be used over optical fiber cable. Surveillance integrators in the field can also connect installation monitors and laptops (via the RJ45 connectors) to AXIS T8606 for camera maintenance and control. The media converter switch can be connected in a daisy chain network.Specifications
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SFP |
| Features | |
| DIN rail mounting | Yes |
| Housing material | Metal |
| LED indicators | LAN, Power |
| Product colour | White |
| Internal | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
| Power | |
| Input voltage | 24 V |
| Power consumption (typical) | 3.5 W |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 100 mm |
| Weight | 284 g |
| Height | 30 mm |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 85% |
| Packaging content | |
| Quick installation guide | Yes |
| Technical details | |
| Housing material | Metal |
| Internal | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | LAN, Power |
| Design | |
| DIN rail mounting | Yes |
| Housing material | Metal |
| Safety | IEC/EN 60950-1 |
| LED indicators | LAN, Power |
| Product colour | White |
| Certification | REACH, WEEE, CE, EN 50022, IEC 60715, AS 2756, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32, KCC KN32 Class A, KN35 |
| Internal | Yes |
| Colour | |
| Product colour | White |
| Certificates | |
| Safety | IEC/EN 60950-1 |
| Certification | REACH, WEEE, CE, EN 50022, IEC 60715, AS 2756, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32, KCC KN32 Class A, KN35 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
