5x 100/1000 Mbps PoE, 1x SFP, 10 Gbps, 7.44 Mpps, 29.1 x 107.3 x 139 mm, 500 g
Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS100-5P PoE switch with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The wide operating temperature range ensures reliable performance in adverse environments and expands RGS100-5P’s network availability in a wide variety of field applications.
Benefits
Rugged and reliable design for harsh environments
Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Trouble-free installation and easy extendibility
This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.
Plug-and-Play deployments
The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.

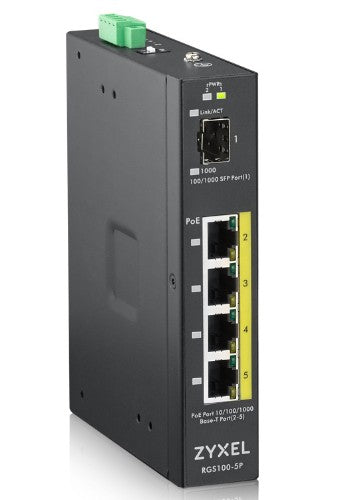

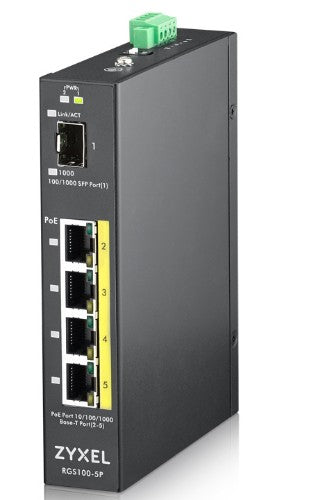

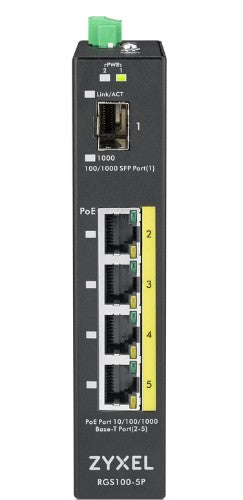

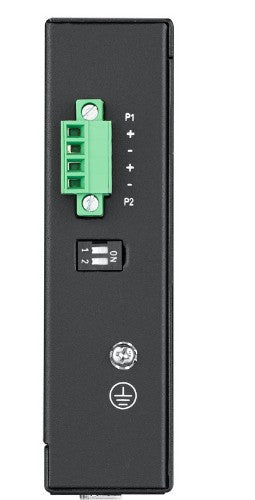

Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
£292.82
Taxes included.
Shipping calculated at checkout.
Details
Description
5-port GbE Unmanaged PoE SwitchAlong with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS100-5P PoE switch with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The wide operating temperature range ensures reliable performance in adverse environments and expands RGS100-5P’s network availability in a wide variety of field applications.
Benefits
Rugged and reliable design for harsh environments
Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Trouble-free installation and easy extendibility
This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.
Plug-and-Play deployments
The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | SFP |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| MAC address auto-learning supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Optical fiber | |
| Transmission distance (max) | 40 km |
| Fiber ethernet cabling technology | 1000BASE-X |
| Fiber optic connector | SFP |
| Data transmission | |
| Jumbo frames | 9000 |
| Throughput | 7.44 Mpps |
| Packet buffer memory | 0.25 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Performance | |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 568430 h |
| Packet buffer memory | 0.25 MB |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 125 W |
| Power protection features | Short circuit |
| Input voltage | 12 - 58 V |
| DC input voltage | 12 - 58 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Power protection features | Short circuit |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 42625 BTU/h |
| Weight & dimensions | |
| Width | 29.1 mm |
| Depth | 107.3 mm |
| Height | 139 mm |
| Weight | 500 g |
| Packaging content | |
| Rack mount kit | Yes |
| Wall mounting kit | Yes |
| Packaging data | |
| Wall mounting kit | Yes |
| Package width | 70 mm |
| Package depth | 177.8 mm |
| Package height | 205 mm |
| Package weight | 700 g |
| Rack mount kit | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 568430 h |
| Housing material | Metal |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.25 MB |
| Other features | |
| Input voltage | 12 - 58 V |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
