L2, 8x 100/1000 Mbps PoE, 4x SFP, 24 Gbps, 17.86 Mpps, 77 x 127.3 x 154 mm, 1450 g
Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS Series of PoE switches with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The special mechanism enables RGS200-12P to operate in outdoor, factory or other harsh environments for surveillance. In addition, it is also easy to manage RGS200-12P through a user-friendly Webbased GUI.
Benefits
Rugged and reliable design for harsh environments
Equipped with fanless and IP30 standard metal mechanism, the Zyxel RGS200-12P is able to deliver great thermal control and tolerate the dustiest deployments with ease, whether installed on a DIN rail or wall mounted for the most efficient use of cabinet space. Designed to handle temperatures ranging from -40°C to 75°C, the RGS200-12P can be placed in a variety of challenging environments and be adapted to broad range of field applications. When switching is applied normally in outdoor settings, ESD (electrostatic discharge), DC and Ethernet surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Quick failover for stable connectivity
When deployed in harsher conditions, such as factory or outdoor settings, the Zyxel RGS200-12P creates fault-tolerant networks with redundant ring technology and rapid self-recovery capability to prevent interruptions. In the event of downtime caused by a network error, the rapid failover will restore normal operation in less than 20 ms. The switch’s dual DC power inputs and reverse power protection feature ensure continuous uptime and reliable operation.
Trouble-free installation and easy extendibility
This rugged L2 Managed PoE switch comes with eight (8) 10/100/1000 Base-T copper PoE ports and four (4) 100/1000-Base-X SFP fiber interfaces. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30 W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.

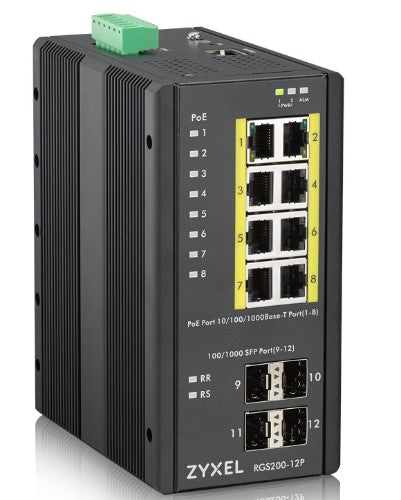

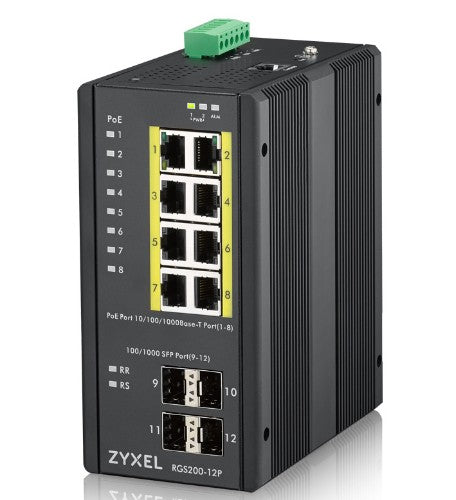

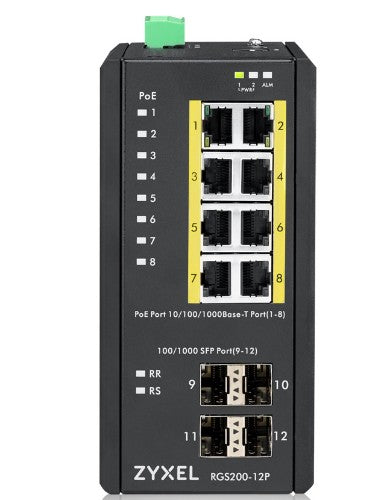

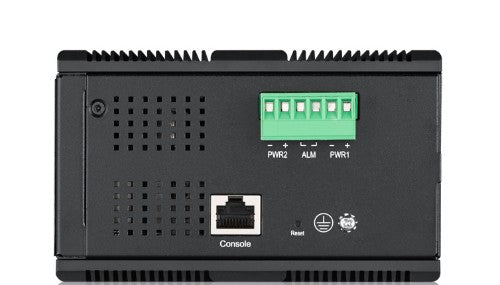

Zyxel RGS200-12P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Sale price
£800.48
Regular price
£807.50
Taxes included.
Shipping calculated at checkout.
Details
Description
12-port GbE Managed PoE SwitchAlong with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS Series of PoE switches with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The special mechanism enables RGS200-12P to operate in outdoor, factory or other harsh environments for surveillance. In addition, it is also easy to manage RGS200-12P through a user-friendly Webbased GUI.
Benefits
Rugged and reliable design for harsh environments
Equipped with fanless and IP30 standard metal mechanism, the Zyxel RGS200-12P is able to deliver great thermal control and tolerate the dustiest deployments with ease, whether installed on a DIN rail or wall mounted for the most efficient use of cabinet space. Designed to handle temperatures ranging from -40°C to 75°C, the RGS200-12P can be placed in a variety of challenging environments and be adapted to broad range of field applications. When switching is applied normally in outdoor settings, ESD (electrostatic discharge), DC and Ethernet surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Quick failover for stable connectivity
When deployed in harsher conditions, such as factory or outdoor settings, the Zyxel RGS200-12P creates fault-tolerant networks with redundant ring technology and rapid self-recovery capability to prevent interruptions. In the event of downtime caused by a network error, the rapid failover will restore normal operation in less than 20 ms. The switch’s dual DC power inputs and reverse power protection feature ensure continuous uptime and reliable operation.
Trouble-free installation and easy extendibility
This rugged L2 Managed PoE switch comes with eight (8) 10/100/1000 Base-T copper PoE ports and four (4) 100/1000-Base-X SFP fiber interfaces. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30 W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 2233 IF MIB, RFC1213 MIB II, RFC 1757 RMON 1/2/3/9, RFC1215, RFC1493, RFC 2674, LLDP-EXT-MED MIB |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | SFP |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1024 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 1024 |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Number of VLANs | 1024 |
| Jumbo frames | 9000 |
| Throughput | 17.86 Mpps |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 24 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Optical fiber | |
| Fiber optic connector | SFP |
| Transmission distance (max) | 40 km |
| Fiber ethernet cabling technology | 1000BASE-X |
| Performance | |
| Packet buffer memory | 0.5 MB |
| Auto-negotiation | Yes |
| Buffer size | 512 KB |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 568430 h |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 568430 h |
| Housing material | Metal |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Security | |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH-2 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 255 W |
| Input voltage | 12 - 58 V |
| DC input voltage | 12 - 58 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 86955 BTU/h |
| Weight & dimensions | |
| Width | 77 mm |
| Depth | 127.3 mm |
| Height | 154 mm |
| Weight | 1.45 kg |
| Packaging data | |
| Wall mounting kit | Yes |
| Rack mount kit | Yes |
| Package width | 133 mm |
| Package depth | 192 mm |
| Package height | 238 mm |
| Package weight | 1.9 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Input voltage | 12 - 58 V |
| Packaging content | |
| Wall mounting kit | Yes |
| Rack mount kit | Yes |
