12x 10GBase-T, 2x SFP, 2x Combo SFP+, L2, 44 x 21 x 4.4 cm, 3.15 kg
By incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality. The switches feature built-in smart fans with internal heat sensors, that monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch's power consumption and noise. Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode. The DXS-1210 takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.
Extensive management and Layer 2 features
The DXS-1210 comes with a complete line-up of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.
Quality of service and bandwidth control
The DXS-1210 supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a technology, that consolidates data and surveillance video transmission through a single DXS-1210 switch, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritized and segmented VLAN, this feature guarantees quality and security of VoIP traffic. The Differentiated Service Code Point (DSCP) markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions, that require higher priority or more bandwidth.
Secure your network
D-Link's innovative Safeguard Engine protects the switches against traffic flooding, caused by malicious attacks. The DXS-1210 supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DXS-1210 also features Address Resolution Protocol (ARP) spoofing prevention, which protects from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets, that contain fake ARP messages. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.

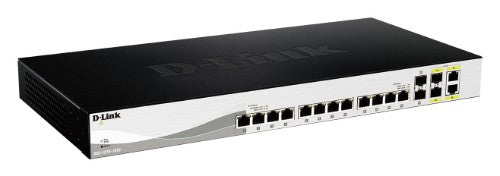

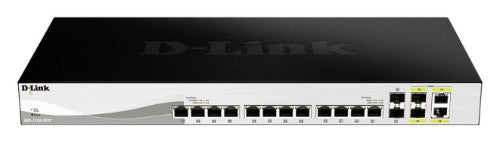

D-Link 12-port 10GBASE-T, 2-port SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed Switch
£1,374.60
Taxes included.
Shipping calculated at checkout.
Details
Description
Energy efficientBy incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality. The switches feature built-in smart fans with internal heat sensors, that monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch's power consumption and noise. Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode. The DXS-1210 takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.
Extensive management and Layer 2 features
The DXS-1210 comes with a complete line-up of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.
Quality of service and bandwidth control
The DXS-1210 supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a technology, that consolidates data and surveillance video transmission through a single DXS-1210 switch, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritized and segmented VLAN, this feature guarantees quality and security of VoIP traffic. The Differentiated Service Code Point (DSCP) markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions, that require higher priority or more bandwidth.
Secure your network
D-Link's innovative Safeguard Engine protects the switches against traffic flooding, caused by malicious attacks. The DXS-1210 supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DXS-1210 also features Address Resolution Protocol (ARP) spoofing prevention, which protects from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets, that contain fake ARP messages. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC 783, RFC 951, RFC 1157, RFC 1213, RFC 1215, RFC 1350, RFC 1493, RFC 1769, RFC 1542, RFC 1901, RFC 1907, RFC 1908, RFC 2131, RFC 2138, RFC 2139, RFC 2233, RFC-2246, RFC 2475, RFC 2570, RFC 2575, RFC 2598, RFC 2618, RFC 2819, RFC 2865, RFC 3164, RFC 3195, RFC 3411-17 |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Combo SFP ports quantity | 2 |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN, MAC address-based VLAN, Port-based VLAN |
| IGMP snooping | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| Jumbo frames | 16000 |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 238.08 Mpps |
| Multicast Listener Discovery (MLD) snooping | MLD v |
| Security | |
| IP-MAC-Port binding | Yes |
| Access Control List (ACL) rules | 256 |
| Security algorithms | 802.1x RADIUS, SNMP, SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v |
| Protocols | |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Safety | cUL, CB, CE, CCC, BSMI |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed |
| Rack mounting | Yes |
| Certification | CE, FCC, C-Ticket, VCCI, BSMI, CCC |
| Performance | |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 90.81 W |
| AC input voltage | 120 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN, MAC address-based VLAN, Port-based VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 3.15 kg |
| Packaging data | |
| Package width | 349 mm |
| Package depth | 546 mm |
| Package height | 96 mm |
| Package weight | 4.53 kg |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Shipping (inner) case width | 31.4 cm |
| Shipping (inner) case net weight | 13.6 kg |
| Shipping (inner) case length | 56.2 cm |
| Shipping (inner) case height | 38.3 cm |
| Products per shipping (inner) case | 3 pc(s) |
| Products per pallet (sea) | 90 pc(s) |
| Products per pallet (air) | 54 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Pallet height (sea) | 2.05 m |
| Pallet height (air) | 128.4 cm |
| Pallet gross weight (sea) | 456 kg |
| Pallet gross weight (air) | 281.1 kg |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Shipping (inner) case gross weight | 14.5 kg |
| Certificates | |
| Safety | cUL, CB, CE, CCC, BSMI |
| Certification | CE, FCC, C-Ticket, VCCI, BSMI, CCC |
| Indication | |
| LED indicators | Activity, Link, Power, Speed |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
