Intel® Xeon® Processor E5-1680 v4
(20M Cache, 3.40 GHz)
The Intel® Xeon® processor E5 v4 family brings an evolutionary leap in performance and capabilities to your next-gen data center running on software defined infrastructure, supporting an agile cloud architecture and a highly-efficient traditional workload management.
The Intel® Xeon® processor E5-1600 v4 product family provides a professional, high-performance workstation platform ideal for efficient multitasking, advanced model generation, and complex applications.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5-2600 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Build Your Agile Enterprise with Intel
Intel® Resource Director Technology
Use orchestration and automation features within Intel® RDT to help you better manage shared platform resources dynamically across compute, network, and storage.
Intel® Transactional Synchronization Extensions
Boost performance for online transaction processing (OLTP) and other multi-threaded workloads that are currently slowed by memory locking with Intel® TSX.
Intel® Advanced Vector Extensions 2
Implement Intel® Advanced Vector Extensions 2 (Intel® AVX2) to optimize overall performance for heterogeneous workloads running concurrently, even for applications that don’t use Intel AVX.
Innovative Technology for Diverse Applications and Workloads
Enterprise Cloud
Accelerate your path to a highly efficient, on-premises cloud deployment with innovation based on Intel® architecture.
Software-Defined Infrastructure (SDI)
Use proven, reliable, and innovative Intel technology as the foundation for software-defined infrastructure across your data center.
A Holistic HPC Solution
Fuel your insight with future-ready performance from the Intel® Scalable System Framework (SSF).
High-Performance Computing
Get the performance you need for creating balanced, high-performance computing systems at any scale.

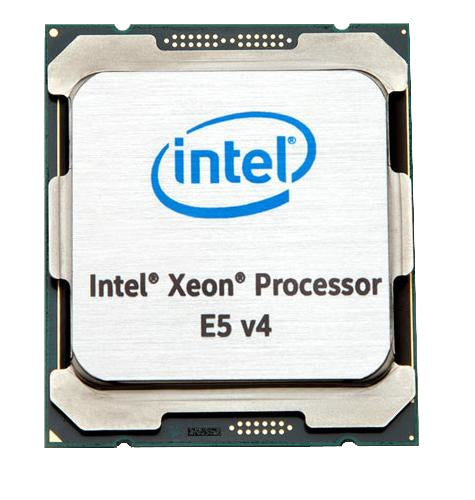

Intel Xeon E5-1680V4 processor 3.4 GHz 20 MB Last Level Cache Tray
£1,430.44
Taxes included.
Shipping calculated at checkout.
Details
(20M Cache, 3.40 GHz)
Description
Intel Inside®. Responsive Digital Services Outside.The Intel® Xeon® processor E5 v4 family brings an evolutionary leap in performance and capabilities to your next-gen data center running on software defined infrastructure, supporting an agile cloud architecture and a highly-efficient traditional workload management.
The Intel® Xeon® processor E5-1600 v4 product family provides a professional, high-performance workstation platform ideal for efficient multitasking, advanced model generation, and complex applications.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5-2600 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Build Your Agile Enterprise with Intel
Intel® Resource Director Technology
Use orchestration and automation features within Intel® RDT to help you better manage shared platform resources dynamically across compute, network, and storage.
Intel® Transactional Synchronization Extensions
Boost performance for online transaction processing (OLTP) and other multi-threaded workloads that are currently slowed by memory locking with Intel® TSX.
Intel® Advanced Vector Extensions 2
Implement Intel® Advanced Vector Extensions 2 (Intel® AVX2) to optimize overall performance for heterogeneous workloads running concurrently, even for applications that don’t use Intel AVX.
Innovative Technology for Diverse Applications and Workloads
Enterprise Cloud
Accelerate your path to a highly efficient, on-premises cloud deployment with innovation based on Intel® architecture.
Software-Defined Infrastructure (SDI)
Use proven, reliable, and innovative Intel technology as the foundation for software-defined infrastructure across your data center.
A Holistic HPC Solution
Fuel your insight with future-ready performance from the Intel® Scalable System Framework (SSF).
High-Performance Computing
Get the performance you need for creating balanced, high-performance computing systems at any scale.
Specifications
| Processor | |
|---|---|
| Processor base frequency | 3.4 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Broadwell |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Thermal Design Power (TDP) | 140 W |
| Processor cache | 20 MB |
| Processor ARK ID | 92992 |
| Processor model | E5-1680V4 |
| Processor threads | 16 |
| System bus rate | 0 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4 GHz |
| Stepping | R0 |
| Number of QPI links | 0 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® E5 v4 |
| Processor cores | 8 |
| Processor socket | LGA 2011-v3 |
| Processor code | SR2P8 |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor cache type | Last Level Cache |
| Package type | Tray |
| Memory | |
| Maximum internal memory supported by processor | 1.54 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 140 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR2P8 |
| Product type | Processor |
| Processor cache | 20480 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 140 W |
| Supported memory types | DDR4-SDRAM |
| Status | Launched |
| Processor series | Intel Xeon E5-1600 v4 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Launch date | Q2'16 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor cache type | Last Level Cache |
| Bus type units | GT/s |
| Intel TSX-NI version | 1.00 |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 v4 Family |
| Bus speed | 0 GT/s |
| Servicing status | End of Servicing Updates |
| End of servicing updates date | Thursday, June 30, 2022 |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 140 W |
| Processor package size | 45mm x 52.5mm |
| Processor ARK ID | 92992 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR2P8 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Harmonized System (HS) code | 85423119 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Operational conditions | |
| Tcase | 70 °C |
| Packaging data | |
| Package type | Tray |
| Logistics data | |
| Harmonized System (HS) code | 85423119 |
| Weight & dimensions | |
| Processor package size | 45mm x 52.5mm |
| Other features | |
| Maximum internal memory | 1572864 MB |
| Maximum internal memory | 1.5 TB |
| CPU configuration (max) | 1 |
| Processor code | SR2P8 |
