208-240 V, 50/60 Hz, 16 A, 8 ms
Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions

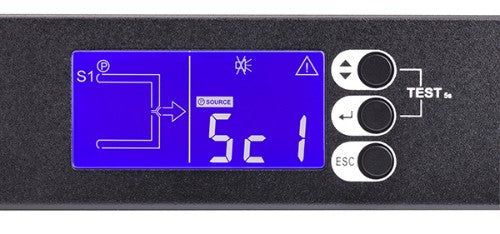

- LCD with metering and basic configuration capabilities

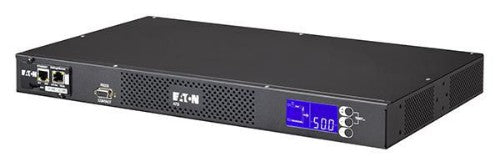

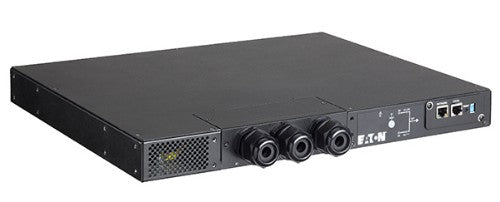

Eaton ATS16N uninterruptible power supply (UPS) 9 AC outlet(s)
Sale price
£755.10
Regular price
£1,041.29
Taxes included.
Shipping calculated at checkout.
Details
Description
The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions
- LCD with metering and basic configuration capabilities
Specifications
| Power | |
|---|---|
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Performance | |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Number of phases | 1 |
| Response time | 8 ms |
| LED indicators | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Web-based management | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 8 ms |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 16 A |
| Input frequency | 50/60 Hz |
| Number of phases | 1 |
| Ports & interfaces | |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Number of output IEC jumpers | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Rack capacity | 1U |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black |
| Safety | IEC/EN 62310-1, IEC/EN 60950-1 |
| Certification | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| Display type | LED |
| Technical details | |
| Output frequency | 50/60 Hz |
| Mounting | Horizontal |
| Harmonized System (HS) code | 85078000 |
| Management features | |
| Web-based management | Yes |
| Weight & dimensions | |
| Weight | 3.5 kg |
| Width | 440 mm |
| Height | 43 mm |
| Depth | 250 mm |
| Packaging data | |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Safety | IEC/EN 62310-1, IEC/EN 60950-1 |
| Certification | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| Other features | |
| Mounting | Horizontal |
| Number of phases | 1 |
| Nominal input voltage | 230 V |
| Packaging content | |
| Rack mount kit | Yes |
