DCS-6517, CMOS 1/3.2", 5 MP, Oudoor Dome Network Camera
Combined with its power over Ethernet (PoE) capability this truly is a versatile solution that can be used in a wide range of applications.
Built for the Outdoors
Specially built for outdoor use, the DCS-6517 has an IP66 weatherproof housing that protects it from dirt and rain. The durable housing has also been designed to meet IK10 vandal proof specifications, meaning that it can be deployed into areas that are prone to vandalism.
Continuous Monitoring
The DCS-6517 also has built-in IR LED illuminators with a 20 metre range, allowing the camera to keep watch even in complete darkness. To maximise bandwidth efficiency and improve image quality, the DCS-6517 provides real-time video compression using the H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
The DCS-6517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.
Robust Management Software
Includes D-ViewCam™, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location.
Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

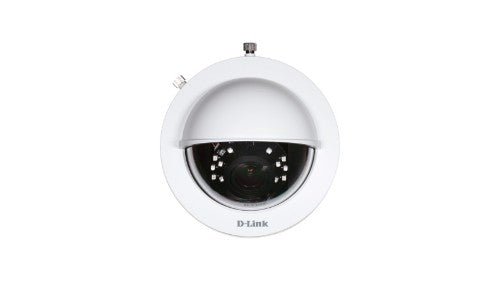

D-Link DCS-6517 security camera Dome IP security camera Outdoor 2560 x 1920 pixels Ceiling
MPN:
DCS-6517
Out of stock
Price excluding VAT:
Exc Vat £521.70
Price including VAT:
Inc Vat £626.04
Shipping calculated at checkout.
Details
Description
The D-Link DCS-6517 5 Megapixel Varifocal Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for businesses and enterprises. The camera uses a 5 megapixel progressive scan CMOS sensor to deliver truly superior quality video in all conditions.Combined with its power over Ethernet (PoE) capability this truly is a versatile solution that can be used in a wide range of applications.
Built for the Outdoors
Specially built for outdoor use, the DCS-6517 has an IP66 weatherproof housing that protects it from dirt and rain. The durable housing has also been designed to meet IK10 vandal proof specifications, meaning that it can be deployed into areas that are prone to vandalism.
Continuous Monitoring
The DCS-6517 also has built-in IR LED illuminators with a 20 metre range, allowing the camera to keep watch even in complete darkness. To maximise bandwidth efficiency and improve image quality, the DCS-6517 provides real-time video compression using the H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
The DCS-6517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.
Robust Management Software
Includes D-ViewCam™, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location.
Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Maximum operating distance | 20 m |
| Certification | CE, CE LVD, FCC, C-Tick |
| Design | |
| Weatherproof | Yes |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| International Protection (IP) code | IP66 |
| Camera | |
| Minimum illumination | 0.5 lx |
| Camera shutter speed | 1/2.5 - 1/10000 s |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3.2 mm (1 / 3.2") |
| Lens system | |
| Maximum aperture number | 1.4 |
| Digital zoom | 4x |
| Night vision | |
| Night vision | No |
| LED type | IR |
| Video | |
| Full HD | Yes |
| Privacy masking | Yes |
| Video compression formats | H.264, M-JPEG |
| Maximum resolution | 2560 x 1920 pixels |
| Video formats supported | H.264 |
| Frame rate | 30 fps |
| Total megapixels | 5 MP |
| Audio | |
| Voice codecs | G.711 |
| Audio system | 2-way |
| Audio formats supported | AAC, G.711 |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Supported network protocols | TCP/IP |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | SD, SDHC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Motion sensor | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 11.6 W |
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | CE, CE LVD, FCC, C-Tick |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
| Width | 137 mm |
| Depth | 137 mm |
| Height | 106 mm |
| Weight | 1.25 kg |
| Package width | 172 mm |
| Package height | 180 mm |
| Package depth | 228 mm |
| Package weight | 1.61 kg |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Video resolutions | 320 x 240,640 x 360,960 x 540,1280 x 720,1280 x 960,1920 x 1080,2560 x 1920 |
| Shipping (inner) case width | 19.6 cm |
| Shipping (inner) case net weight | 6.44 kg |
| Shipping (inner) case length | 47.7 cm |
| Shipping (inner) case height | 37.2 cm |
| Products per pallet (sea) | 240 pc(s) |
| Products per pallet (air) | 144 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Pallet height (sea) | 199.5 cm |
| Pallet height (air) | 125.1 cm |
| Pallet gross weight (sea) | 441.9 kg |
| Pallet gross weight (air) | 273.2 kg |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Shipping (inner) case gross weight | 7.03 kg |
| Other features | |
| Video compression formats | H.264, M-JPEG |
| Logistics data | |
| Products per shipping (inner) case | 4 pc(s) |
| Harmonized System (HS) code | 85258900 |
