15.0" TFT, 1024 x 768px, 16 ms, 700:1, 200 cd/m², black
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.

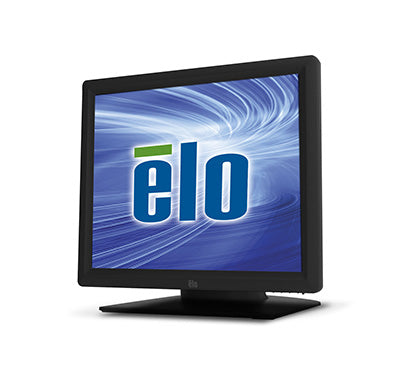

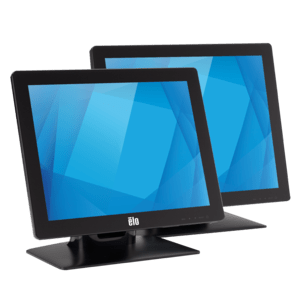

Elo Touch Solutions 1517L Rev B 38.1 cm (15") LCD 200 cd/m² Black Touchscreen
£437.53
Taxes included.
Shipping calculated at checkout.
Details
Description
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.2 million colours |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 200 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Vertical scan range | 56 - 75 Hz |
| Supported graphics resolutions | 720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Native aspect ratio | 4:3 |
| Horizontal scan range | 31.5 - 60 kHz |
| Native refresh rate | 60 Hz |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| Screen shape | Flat |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Power | |
| Power consumption (typical) | 12 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 358 mm |
| Height (with stand) | 319 mm |
| Depth (with stand) | 197 mm |
| Weight (with stand) | 4.3 kg |
| Packaging data | |
| Package width | 487 mm |
| Package depth | 231 mm |
| Package height | 485 mm |
| Package weight | 7.3 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Technical details | |
| Power supply type | AC/DC |
| Dimensions (W x D x H) with stand | 358 x 197 x 319 mm |
| Display viewable area (HxV) | 304 x 228 mm |
| Weight (with stand) | 4.3 kg |
| Other features | |
| Power supply type | AC/DC |
| Dimensions (W x D x H) with stand | 358 x 197 x 319 mm |
| Display viewable area (HxV) | 304 x 228 mm |
| Width (with stand) | 358 mm |
| Voltage tolerance | 5% |
| Mean time between failures (MTBF) | 50000 h |
| Height (with stand) | 319 mm |
| Display technology | LCD |
| Depth (with stand) | 197 mm |
| Aspect ratio | 4:3 |
| Weight (with stand) | 4.3 kg |
